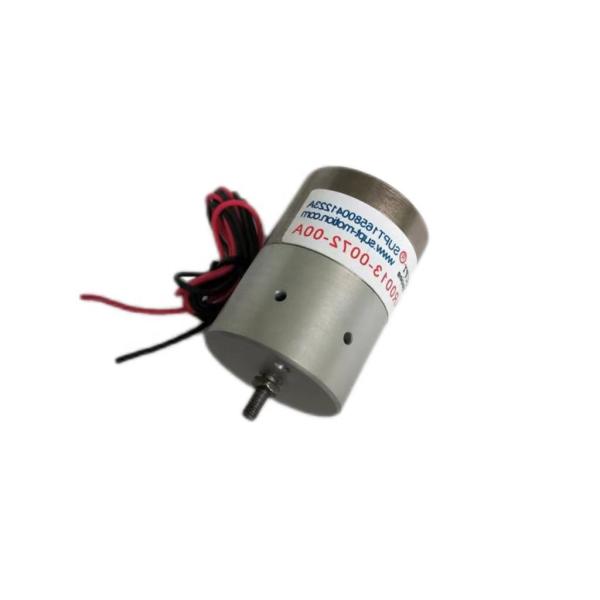

Precision Test And Detection Outlet Type Voice Coil Motor High Frequency High Speed

Product Description:

Built in motion shaft and precision linear bearing. The moving shaft is made of light, high rigidity and wear-resistant high-quality materials.

Introducing the Fully House Voice Coil Actuator – a fully-protected, outlet type voice coil motor that delivers exceptional performance and is fully-enclosed for a low noise level. Constructed with an aluminum alloy, the Fully House Voice Coil Actuator offers superior durability and longevity. It features a 47mm lead wire and produces a Low noise. This Voice Coil Actuator offers a reliable solution for a variety of applications and is highly recommended for micro output shaft motor applications.

Features:

• Fully-Housed Voice Coil Actuator: Product Name
• Positioning Accuracy: ±0.1mm
• Weight: Light
• Stroke Length: 10mm
• Resolution: High

Technical Parameters:

Product Name	Fully Enclosed Voice Coil Actuator
Positioning Accuracy	±0.1mm
Material	Aluminum Alloy
Max Voltage	25V
Peak Force	30N
Noise Level	Low
Weight	Light
Rated Speed	100HZ(RPM)
Stroke Length	10mm
Lead Wire	47mm

Product Model	Peak Force (N)	Continuous Force at 25℃(N)	Total Stroke (mm)	Max Voltage (V)	Back EMF Constant (V/m/s)	Stator Diameter (mm)	The Length (mm)	Shaft end thread (mm)
VCAH0253-0120-00A	253	46.5	12	42.7	16	53.95	109	M5(Inner)
VCAH0011-0070-00A	11	3.6	7	26.2	4.9	31.5	38.9	M3(Outer)
VCAH0013-0070-00A	13	4.2	7	26.6	5.7	29	40.5	M3(Outer)
VCAH0030-0100-00A	30	7.2	10	24.9	5.2	37	47	M3(Outer)
VCAH0040-0075-00A	40	12.3	7.5	16.8	6.9	36	50	∮3
VCAH0040-0240-00A	40	6	24	44.5	8	41	83	M3(Inner)
VCAH0065-0140-00A	65	24.6	14	27.6	16	44	75	M3(Inner)
VCAH0230-0110-00A	230	100	11	34.2	37	71	117	∮10

Applications:

Fully-Enclosed Voice Coil Actuator – SUPT VCAH/VCRH Series
The SUPT VCAH/VCRH Series is a fully-enclosed voice coil actuator, also known as a completely-housed or comprehensively-housed voice coil actuator, certified by ISO9001. It is made of aluminum alloy, and has a Low noise. The rated speed is 100HZ(RPM), and the lead wire is 47mm. It is lightweight, making it ideal for a variety of applications.

The minimum order quantity is ≥3, and the price is $135. Packaging is done in a carton, and delivery time is from general 5-7 days delivery, fast 3-5 days, bulk to be negotiated. Payment terms are T/T. SUPT has the capacity to meet the needs of any order, and can provide an interview if necessary.

It is widely used in semiconductor, precision test and detection, valve flow control field.

Suzhou Unite Precision Machinery Technology Co., Ltd.(Supt Motion) is a high-tech enterprise specializing in the design, manufacturing, and sales of voice coil actuator, linear motors, and precision linear motion platforms. The company produces high-quality and high-performance voice coil actuator, linear motors, and precision linear motion platforms using domestic and foreign front-end technology and testing methods, which can provide precise direct drive control solutions and customized products for domestic and foreign customers.

The company has an experienced technical team in the industry with over 13 years of experience in precision linear motion design, and its products have obtained over 30 patent technology certifications. We can develop high-performance and high-quality products that meet customer requirements based on their actual needs.

The company implements advanced front-end design and process standards both domestically and internationally, has a complete and effective quality assurance system, and strictly implements the ISO 9001 quality management system for standardized production. The testing equipment is complete, and it can conduct comprehensive testing of product performance, effectively ensuring product quality. The company has multiple certifications such as iso9001, CE, and ROHS.

Our tenet: High quality is our pursuit, and customer satisfaction is our commitment.

We will continue to improve in technology Strive for perfection in the quality, We will ensure that our high quality and inexpensive products are satisfied ,Make it has stronger competitiveness.

The company has successfully served over 2000+ domestic and foreign customers, winning market reputation with export quality and Perfect service. We provide high-quality voice coil actuators, linear motors, and precision linear motion platform series products for numerous brand enterprises, widely used in intelligent equipment fields such as semiconductors, optical systems, biomedicine, vibration control, valve control, precision machining, 3C, new energy batteries, automotive electronics, packaging, printing, aerospace, image processing automation, etc.
