Mechanical Parts Electric Motor DC Motor High Acceleration High-Accuracy

Product Description:

Direct current (DC) motors serve as essential components in mechanical systems, providing diverse functionalities and motion control capabilities. Their significance lies in their ability to convert electrical energy into mechanical motion, enabling precise and controlled movement across various mechanical components. Here are some key roles of DC motors:

1. Positioning and Actuation: DC motors are utilized for precise positioning of mechanical parts. They enable controlled rotation and linear movement, ensuring accurate placement and actuation in applications like robotics, CNC machines, and automated systems.

2. Speed Control: DC motors offer adjustable speed control, allowing mechanical components to operate at desired speeds. This is vital in applications such as manufacturing, where different processes require varying speeds for optimal performance.

3. Load Handling: DC motors are capable of generating torque, enabling them to handle different loads. They power mechanisms like lifts, cranes, and material handling equipment, facilitating the movement of heavy objects.

4. Feedback and Control: Incorporating encoders and sensors with DC motors provides feedback on position, speed, and direction. This enables closed-loop control, maintaining accuracy and stability in mechanical systems.

5. Auxiliary Functions: DC motors contribute to auxiliary functions within mechanical components, such as cooling fans in electronic devices, mixers in industrial processes, and pumps in fluid systems.

6. Energy Conversion: DC motors play a role in energy conversion, converting electrical energy from batteries or power supplies into mechanical energy for various applications.

7. Automation: In automated manufacturing, DC motors ensure precision in assembly lines, conveyor systems, and robotic arms, enhancing efficiency and accuracy.

Application:

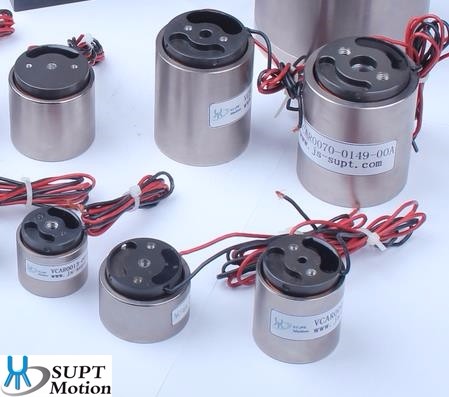

The Fully House Voice Coil Actuator is a miniature out-of-shaft DC motor designed to provide accurate and accurate position control with low noise levels. It is an easy-to-install and fully protected voice coil drive that provides superior dust protection and other external damage. The Motor Model VCAR0013-0072-00A, and CE, ISO9001 certification, low noise, small size, high-frequency high-speed, high-precision, suitable for applications requiring low noise operation, also widely used in semiconductors, precision testing and detection, valve flow control and other fields. The driver is powered by a 24V voltage source and can be used in a variety of applications.

The main application of a voice coil motor:

1.Semiconductor industry:Wiring, cutting, drilling, transportation systems, welding,robotics.

2.Valve operation in the field:Type metering valves, pressure test systems, pneumatic valve chemistry injection system.

3.Micro Machine industry:Feed systems, micro drilling, precision stamping.

4.Vibration System:Shaking table, vibration platform.

5.Medical field:Micro-injection system, respiratory equipment, testing equipment.

6.Aviation Technology:Flight control system, pilot feedback system.

7.Commercial use field:Computer cooling pump miniature camera auto focus system.

8.Automation industry:Laser equipment,dispenser, test equipment, textile machinery.

Technical Parameters:

Product Mdel	Peak Force (N)	Continious Force (N)	Total Stroke (mm)	Max Voltage (V)	Back EMF Constant (V/m/S)	Weight of the Coil (g)	Stator Diameter (mm)	Enter the length of the coil (mm)
VCAR0013-0072-00A	13	4.2	7.2	26.6	5.72	16.2	26.2	24.7
VCAR0006-0050-00A	6.2	2.6	5	15.7	3.57	8.2	25	18.2
VCAR0022-0098-00A	22	6.6	9.8	24.7	5.8	20	34.1	35
VCAR0022-0448-00A	22	11.4	44.9	14.3	4	52	48	75.7
VCAR0032-0050-00A	32	8.9	5	29.3	7.1	51	40	41.7
VCAR0033-0099-00A	33	8	9.9	24.3	5.87	23.5	36	26.7
VCAR0033-0224-00A	33	13.5	22.4	26.7	6.8	75	58	72
VCAR0035-0105-00A	35	15.6	10.5	11.9	5	95	50	67

Detailed Images

Certifications

Our Company

Suzhou Unite Precision Technology Co,Ltd.(SUPT Motion)is an engineering and manufacturing company dedicated to providing Voice Coil Actuator linear motor and linear motor platform,SUPT Motion is to provide both a standard distribution product and also madium and high volume custom OEM solutions.The primary product is voice coil based linear and rotary actuator and brushless permantent magnet type linear motor.

The company has strong R&D capability perfect after sale service system.SUPT Motion is able to according to customer specific requirements design and produce voice coil motor linear motor and all kinds of linear motion platform.With many years of experience,our international engineering and manufacturing staff is able to provide the most advanced technology and best quality product for the Asia,North America,Europe and the world varios areas of voice coil motor and linear motor customers and dealers.

The company is able to provide cost effective solution to you large OEM production requirement for you by being based in the manufacturing centers of Suzhou,we will continue to improve in technology strive for perfection in the quality.Adhering to the tenet of SUPT Motion Hight quality is our pursult,Customer satisfaction is our commitment.With our strict quality deparment and production deparment ensure that our high quality and inexpensive products motor more cost-effective to serve customers make it has strong competitiveness.
