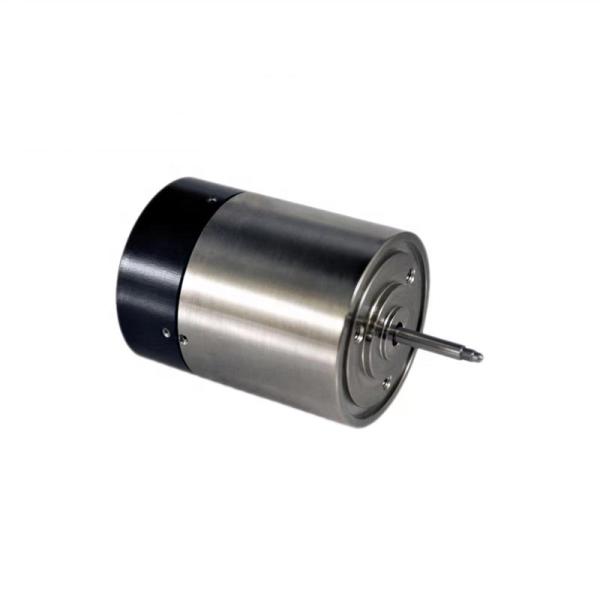

24V/110V/220V Electric High-Precision Actuator Low Noise ≤50dB

Product Description:

Our High-Power Actuator offers a superior combination of high-precision control and long life. With its IP67 rated protection and 7mm total stroke, this actuator is perfect for use in harsh environments. It is constructed of durable aluminum alloy and offers high speed (rpm) performance.

Features:

• High-Precision Actuator: High-precision actuators that can provide high accuracy and repeatability.
• Ventilator Precision Voice Coil Motor: High-speed and high-efficiency ventilator precision voice coil motor, which can provide faster and more precise motion.
• High-Efficiency Actuator: Lightweight and long life high-efficiency actuator, which can provide higher performance with lower power consumption.
• Speed: High speed (rpm).
• Weight: Light.
• Life: Long.
• Protection: IP67.

Technical Parameters:

Property	Description
Noise	≤50dB
Actuator Constant	2.6N/W
Voltage	24V/110V/220V
Life	Long
Speed	High Speed (rpm)
Resistance	DC
Peak Force	15N
Weight	Light

Winding constant	TOL	SYM	VALUE	UNIT
D.C resistance	±10%	R	4.6	Ω
Yoltage @ Fo	NORMAL	Vp	11.5	V
Current © Fp	NORMAL	Ip	2.5	A
Force constant	±10%	Kf	5.6	N/A
Back EME_Constant	NORMAL	Kb	5.6	V/M/Sec
Inductance	±30%	L	0.74	mH
Actuator parameters		SYM	VALUE	UNIT
Peak force		Fp	15	N
Cantinuous force		FC	5.8	N
Actuator constant		Ka	2.6	NNW
Electrical time constant		Te	0.16	milli-sec
Power @ Fp		Pp	28	W
Total stroke		s	7	mm
Friction		Ff	<30	mN
Thecnal resistance		Ѳth	6.9	℃/W
Max winding temp		Tmax	150	℃
Weight of coil assembly		WTc	13	g
Weight of magnet assembly		WTf	224	g
Actuator weight		WTg	237	g

Applications:

The SUPT MOTION VCMH Series High Performance Actuator is an electric actuator of superior quality and performance, with a brand name of SUPT MOTION, model number VCMH Series, and a place of origin in Jiangsu, China. It is certified with ISO9001, CCC.CE, and is available for a minimum order quantity of ≥1. The price is $136, and it is packaged in carton packaging etc. The delivery time is 1-5 products 5-7 days shipment, samples 3-5 days, and bulk to be negotiated. Payment terms are T/T, and the supply ability is available for interview. This high-efficiency actuator is light in weight, and is suitable for 24V voltage. It is also provided with a 1-year warranty. It is specifically designed to provide high-speed and high-power performance in the most demanding environments. It is ideal for a wide range of applications including industrial automation, robotics, and medical equipment.

Suzhou Unite Precision Machinery Technology Co., Ltd.(Supt Motion) is a high-tech enterprise specializing in the design, manufacturing, and sales of voice coil actuator, linear motors, and precision linear motion platforms. The company produces high-quality and high-performance voice coil actuator, linear motors, and precision linear motion platforms using domestic and foreign front-end technology and testing methods, which can provide precise direct drive control solutions and customized products for domestic and foreign customers.

The company has an experienced technical team in the industry with over 13 years of experience in precision linear motion design, and its products have obtained over 30 patent technology certifications. We can develop high-performance and high-quality products that meet customer requirements based on their actual needs.

The company implements advanced front-end design and process standards both domestically and internationally, has a complete and effective quality assurance system, and strictly implements the ISO 9001 quality management system for standardized production. The testing equipment is complete, and it can conduct comprehensive testing of product performance, effectively ensuring product quality. The company has multiple certifications such as iso9001, CE, and ROHS.

Our tenet: High quality is our pursuit, and customer satisfaction is our commitment.

We will continue to improve in technology Strive for perfection in the quality, We will ensure that our high quality and inexpensive products are satisfied ,Make it has stronger competitiveness.

The company has successfully served over 2000+ domestic and foreign customers, winning market reputation with export quality and Perfect service. We provide high-quality voice coil actuators, linear motors, and precision linear motion platform series products for numerous brand enterprises, widely used in intelligent equipment fields such as semiconductors, optical systems, biomedicine, vibration control, valve control, precision machining, 3C, new energy batteries, automotive electronics, packaging, printing, aerospace, image processing automation, etc.
