    3000N Vibration Motors Screw Couplings For Aerospace High Frequency Vibration Motors

    Ask Lasest Price
    Brand Name : SUPT
    Model Number : VCAZ0020-0040
    Supply Ability : 3000 Piece/Pieces per Month
    Price : $112.00/pieces >=1 pieces
    Certification : ISO9001
    Payment Terms : T/T
    Delivery Time : 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated
    • Product Details
    • Company Profile

    3000N Vibration Motors Screw Couplings For Aerospace High Frequency Vibration Motors

    3000N Spiral-Type Coupling Vibrating Motor For Aviation High Frequency


    Product Description

    The aviation spiral coupling high-frequency vibration motor refers to a high-frequency vibration motor applied in the aviation field, whose working principle involves spiral structure and coupling technology. This type of motor may be used in aviation engineering to achieve specific vibration control, excitation, or testing needs. Aviation spiral coupled high-frequency vibration motors may be used for vibration testing of aircraft structures to evaluate their durability and reliability. In addition, they may also be used to simulate vibration under different flight conditions, helping to improve aircraft design. These motors may be integrated into aviation test benches, simulators, or actual flight tests.


    Applications:


    Vibration Motors, also known as vibration-excited motors, are brushless motors used to generate vibration for a variety of applications. These motors are well suited for applications requiring precise vibration control and stability. They are used in a variety of industries including yachts, cars, electric bikes, 3D printing, microscopes, robotics, medical breathing machines, optical projects and the military. They are also used in applications such as medical devices, robotics, games and consumer products. The main characteristics of vibration motor are large power, small size, light weight, low noise, high vibration frequency, good induction, good stability, high precision vibration frequency, good induction, good stability, with high accuracy and wide voltage range, these motors can be used in a variety of applications, including vibration testing, vibration isolation, vibration suppression and vibration control. Vibration Motors provide reliable, cost-effective solutions for vibration control and power generation. They are easy to install and maintain, and come in a variety of sizes and power levels to meet the needs of any application.

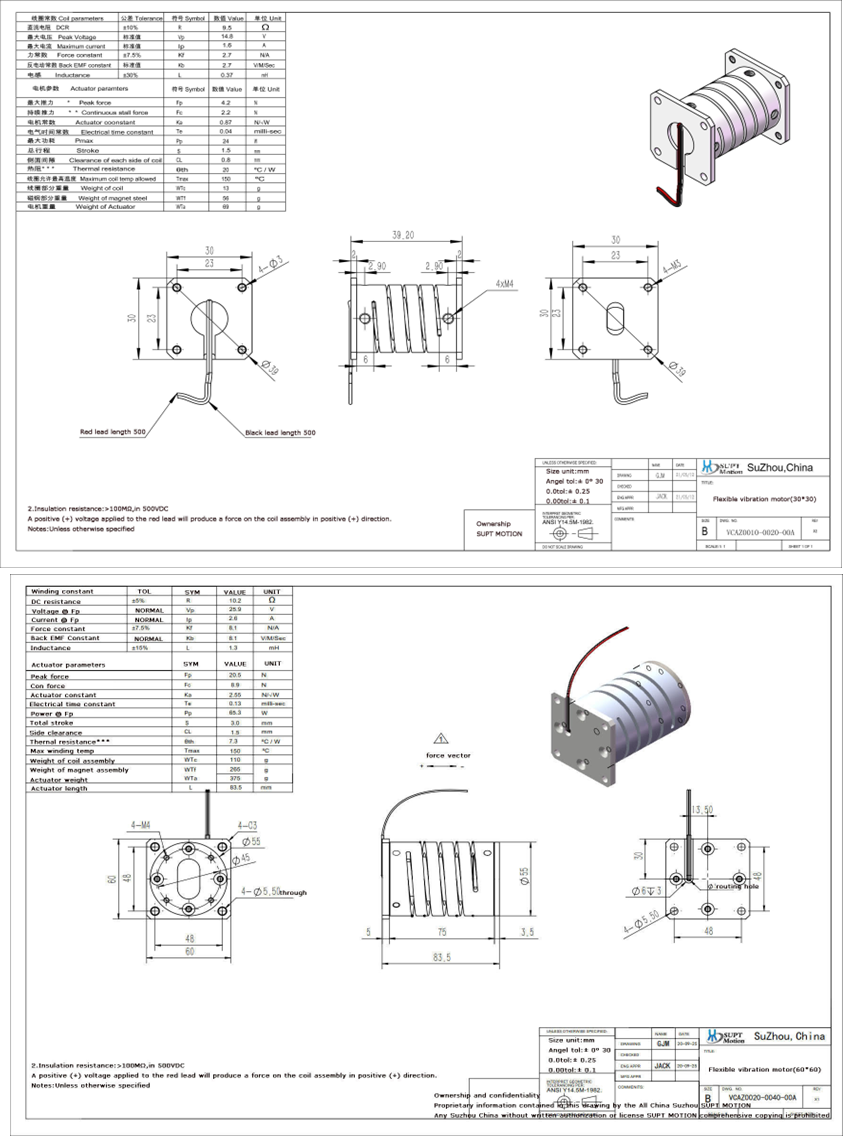

    Technical Parameters:

    Winding constant
    VALUE
    UNIT
    DC resistance10.2Ω
    Voltage @ Fp
    25.9V
    Current @ Fp
    2.6A
    Inductance
    1.3mH
    Peak force
    20.5N
    Con force
    8.9N
    Actuator constant
    2.55Ka
    Power @ Fp
    65.3W
    Total stroke
    3mm
    Max winding temp
    150ºC
    Actuator weight
    110g

    3000N Vibration Motors Screw Couplings For Aerospace High Frequency Vibration Motors

    Our Services

    Technical indicators & specifications can be customized

    Satisfactory after-sales service


    3000N Vibration Motors Screw Couplings For Aerospace High Frequency Vibration Motors

    Company Information

    3000N Vibration Motors Screw Couplings For Aerospace High Frequency Vibration Motors


    Packaging & Shipping

    3000N Vibration Motors Screw Couplings For Aerospace High Frequency Vibration Motors


    Certifications

    3000N Vibration Motors Screw Couplings For Aerospace High Frequency Vibration Motors

    FAQ

    stator:


    1.Travel: effective travel, used to calculate the the total travel of value force.


    2.The direction of movement: horizontal or vertical installation 90 degree.


    3.Load force: constant in the reverse direction of force on the motor, such as springs, etc.


    4.Load weight: the total quality part of movement, including the quality slider


    5.Movement Type: 1.point to point movement; 2.the reciprocation of the rule (e.g. scanning).


    6.Velocity curve: 1.a trapezoidal speed curve; 2.triangular speed curve; 3.sine speed curve.
