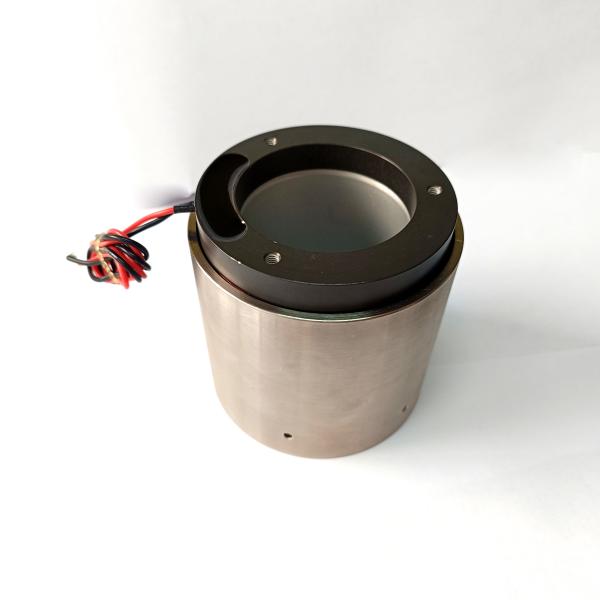

16mm Travel Hollow Core Power Motor with 75N Peak Force Flange Mounting

Product Description:

Hollow Core Motor is a kind of Coreless Power Motor with a totally enclosed protect feature. It has an inner through-hole voice coil motor, a shaft diameter of 20mm, a rated frequency of 100Hz, and a rated power of 2500N. This motor is ideal for applications requiring high speed, high torque, and low current consumption. It is widely used in robotics, medical equipment, and automation. The Hollow Core Motor has excellent durability and accuracy, making it a reliable option for precision applications. It is also low-noise and compact, making it easy to install in tight spaces. It is an ideal solution for applications requiring high performance, reliability, and efficiency.

Features:

• Product Name: Hollow Core Motor
• Maximum travel(mm): 16
• Cooling Method: Air Cooling
• Enter the length of the coil(mm): 51mm
• Insulation Class: F
• Noise Level: Low
• Product Feature: Coreless Rotating Motor, Internal Rotating Motor

Technical Parameters:

Property	Value
Insulation Class	F
Product model	VCAD0075-0160-00A
Enter the length of the coil(mm)	51mm
Noise Level	Low
Shaft Diameter	20mm
Cooling Method	Air Cooling
Stroke	16mm
Voltage	33V
Motor Type	Hollow Core Motor
Rated Power	2500N

Product Model	Peak Force (N)	Continuous Force at 25℃(N)	Total Stroke (mm)	Max Voltage (V)	Back EMF Constant (V/m/s)	Stator Diameter (mm)	The Length (mm)	Through-hole diameter
VCAD0075-0160-00A	75	23	16	33	17	54	51	∮20
VCAD0120-0200-00A	120	53	20	78	53	85	75	∮53
VCAD0220-0110-00A	220	100	11	35	35.8	71	64	∮25.4

Applications:

The SUPT VCAD Series Hollow Core Motor is a reliable and low noise motor made in Jiangsu, China. It has been certified with ISO9001 for its high quality and safety standards. The minimum order quantity for this motor is ≥2. It has an affordable price of $95 and is usually packed in carton packaging. The delivery time is usually within general 5-7 days delivery, fast 3-5 days, bulk to be negotiated. Payment terms are negotiable and can be made with T/T. The supply ability can be discussed in an interview. It has an insulation class of F and a rated frequency of 100Hz, with a maximum travel of 16mm. The noise level is low and it is an excellent choice for inner through-hole voice coil motor applications.

It is widely used in optical scanning, positioning ,and auto focusing systems.

Suzhou Unite Precision Machinery Technology Co., Ltd.(Supt Motion) is a high-tech enterprise specializing in the design, manufacturing, and sales of voice coil actuator, linear motors, and precision linear motion platforms. The company produces high-quality and high-performance voice coil actuator, linear motors, and precision linear motion platforms using domestic and foreign front-end technology and testing methods, which can provide precise direct drive control solutions and customized products for domestic and foreign customers.

The company has an experienced technical team in the industry with over 13 years of experience in precision linear motion design, and its products have obtained over 30 patent technology certifications. We can develop high-performance and high-quality products that meet customer requirements based on their actual needs.

The company implements advanced front-end design and process standards both domestically and internationally, has a complete and effective quality assurance system, and strictly implements the ISO 9001 quality management system for standardized production. The testing equipment is complete, and it can conduct comprehensive testing of product performance, effectively ensuring product quality. The company has multiple certifications such as iso9001, CE, and ROHS.

Our tenet: High quality is our pursuit, and customer satisfaction is our commitment.

We will continue to improve in technology Strive for perfection in the quality, We will ensure that our high quality and inexpensive products are satisfied ,Make it has stronger competitiveness.

The company has successfully served over 2000+ domestic and foreign customers, winning market reputation with export quality and Perfect service. We provide high-quality voice coil actuators, linear motors, and precision linear motion platform series products for numerous brand enterprises, widely used in intelligent equipment fields such as semiconductors, optical systems, biomedicine, vibration control, valve control, precision machining, 3C, new energy batteries, automotive electronics, packaging, printing, aerospace, image processing automation, etc.
