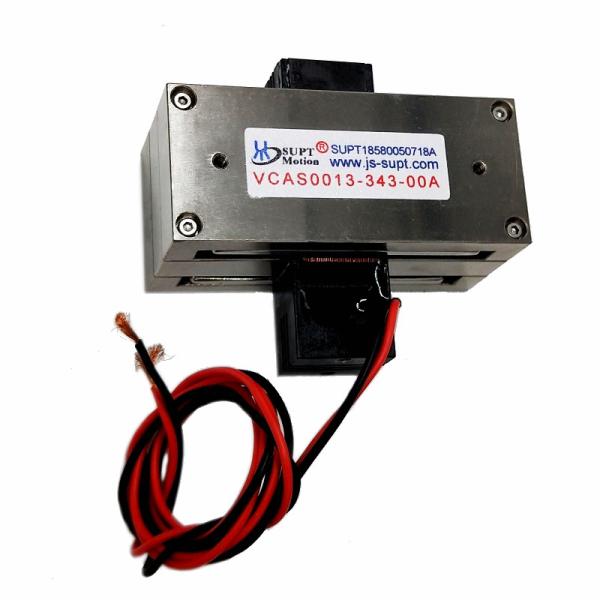

    50mm Stroke Linear Motor Actuator High Positioning Accuracy Voice Coil Motor

    Ask Lasest Price
    Brand Name : SUPT MOTION
    Model Number : VCAS Series
    Certification : ISO9001-2000
    Price : $115-$156
    Delivery Time : General 5-7 days delivery, fast 3-5 days, bulk to be negotiated
    Payment Terms : T/T
    Supply Ability : Interview
    • Product Details
    • Company Profile

    50mm Stroke Linear Motor Actuator High Positioning Accuracy Voice Coil Motor

    50mm Stroke Linear Motor Actuator with 0.1mm Positioning Accuracy

    Product Description:

    Linear Electric Motor Actuator

    Our Linear Electric Motor Actuator is a type of rectangular electric motor drive and system, designed for linear motion control and automation. It is fabricated with an aluminum alloy housing that provides total protection and insulation. The current rating of this motor actuator is 2A.

    The Linear Electric Motor Actuator is ideal for applications that require high-precision, fast-speed, and reliable linear motion. It can be used for a variety of applications, such as industrial automation, robotics, and precision instrumentation.

    The VCAS series Rectangular Actuators have a lower force per weight than the Cylindrical Actuators.But they also have a much longer strokes Forces range up to 1000N and 250mm.The VCAS series Rectangular Actuator are the ideal solution for X-Y Axis movements and their major market is in the semiconductor and micro machine tool industries.

    Features:

    • Product Name: Linear Motor Actuator
    • Type: Rectangular Type Actuator
    • Name: Linear Motor Actuator Unit
    • Power Supply:DC
    • Noise Level: 50dB
    • Protect Feature: Totally Enclosed
    • Linear Motor Actuator Unit: Linear Electric Motor Actuator
    • Electric Motor Actuator: Linear Electric Motor Actuator

    Technical Parameters:

    FeatureSpecification
    Protect FeatureTotally Enclosed
    WeightLow
    Repeatability0.05mm
    Stroke Length50mm
    Voltage11V
    Peak force2.1N
    Power SupplyDC
    SpeedHigh
    Noise LevelLow

    Product ModelPeak Force
    (N)
    Continuous Force
    at 25℃(N)
    Total Stroke
    (mm)
    Max Voltage
    (V)
    Back EMF Constant
    (V/m/s)
    Weight of the coil
    (g)
    Length
    (mm)
    Width
    (mm)
    Height
    (mm)
    VCAS0002-0498-00A2.11.35011.31.3157242.633
    VCAS0002-0747-00A2.11.374.711.31.315100.542.637
    VCAS0006-0030-00A6.13.2313.34.618.225.134.127
    VCAS0006-0099-00A6.13.21013.74.618.233.534.126.9
    VCAS0013-0343-00A13834.312.65.84068.36034.8
    VCAS0065-1000-00A6522.410028.79.713517059.681.9

    Applications:

    The main application of a voice coil motor:
    1.Semiconductor industry:Wiring, cutting, drilling, transportation systems, welding, robotics.
    2.Valve operation in the field:Type metering valves, pressure test systems, pneumatic valve chemistry injection system.
    3.Micro Machine industry:Feed systems, micro drilling, precision stamping.
    4.Vibration System:Shaking table, vibration platform.
    5.Medical field:Micro-injection system, respiratory equipment, testing equipment.
    6.Aviation Technology:Flight control system, pilot feedback system.
    7.Commercial use field:Computer cooling pump miniature camera auto focus system.
    8.Automation industry:Laser equipment, dispenser, test equipment, textile machinery.
