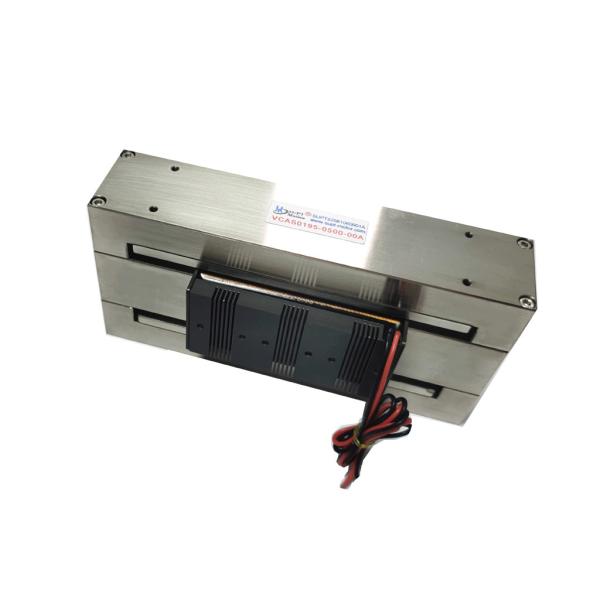

    4.9A Current Linear Voice Coil Motor High Acceleration Compact Linear Actuator

    Ask Lasest Price
    Brand Name : SUPT MOTION
    Model Number : VCAS Series
    Certification : ISO9001-2000
    Price : $145
    Delivery Time : General 5-7 days delivery, fast 3-5 days, bulk to be negotiated
    Payment Terms : T/T
    Supply Ability : Interview
    • Product Details
    • Company Profile

    4.9A Current Linear Voice Coil Motor High Acceleration Compact Linear Actuator

    Linear Motor Actuator - 2A Current - 0.05mm Repeatability - Operating Temperature from -20℃ to +60℃

    Product Description:

    The Linear Motor Actuator Unit is a linear electro-mechanical actuator system that is designed to provide high-speed, high-force linear electric motor motion. It is made from durable aluminum alloy materials and is totally enclosed for ultimate protection. With a voltage of 29V, it delivers a peak force of 65N to ensure reliable performance. This Linear Motor Actuator Unit is the ideal choice for any linear electric motor system that requires high-speed and high-force motion.

    Features:

    • Product Name: Linear Motor Actuator
    • Linear Motor Drive System: Linear Electric Motor Drive
    • Positioning Accuracy: 0.1mm
    • Protect Feature: Totally Enclosed
    • Speed:High
    • Weight: 135g
    • Peak force: 65N
    • Linear Motor Actuator Unit: High torque and accuracy

    Technical Parameters:

    ParameterValue
    System TypeLinear Electric Motor System, Linear Motor Drive System, Linear Electro-Mechanical Actuator
    Peak Force65N
    Protect FeatureTotally Enclosed
    Power SupplyDC
    Repeatability0.05mm
    Voltage29V
    TypeRectangular Type Actuator
    SpeedHigh
    WeightLow
    Current4.9A
    Positioning Accuracy0.1mm
    Product ModelPeak Force
    (N)
    Continuous Force
    at 25℃(N)
    Total Stroke
    (mm)
    Max Voltage
    (V)
    Back EMF Constant
    (V/m/s)
    Weight of the coil
    (g)
    Length
    (mm)
    Width
    (mm)
    Height
    (mm)
    VCAS0002-0498-00A2.11.35011.31.3157242.633
    VCAS0002-0747-00A2.11.374.711.31.315100.542.637
    VCAS0006-0030-00A6.13.2313.34.618.225.134.127
    VCAS0006-0099-00A6.13.21013.74.618.233.534.126.9
    VCAS0013-0343-00A13834.312.65.84068.36034.8
    VCAS0065-1000-00A6522.410028.79.713517059.681.9

    Applications:

    The Linear Actuator Motor is widely used in a variety of applications, including medical equipment, industrial automation systems, aerospace, automotive, and other fields. It is an ideal choice for customers who need reliable and accurate linear motion control. With its high-performance linear motor actuator system, it is suitable for applications that require a high degree of accuracy and precise control. Its linear electric motor actuator supports a wide range of operation, ranging from high-speed operations to low speed applications.
