High Precision Linear Motor Actuator Rectangular Type Linear Voice Coil Motor

Rectangular Type Voice Coil Motor Low Noise High-Precision High Acceleration

Product Description

Rectangular Voice Coil Motor (RVCM) is a special type of motor with a structure similar to traditional voice coil motors, but the coil shape is rectangular. This type of motor usually consists of a fixed magnet and a relatively moving coil, which generates motion through the interaction of current and magnetic field. Rectangular voice coil motors have advantages in certain specific applications and can provide unique functions and characteristics.
The characteristics and applications of rectangular voice coil motors include:
1. Compact Design: Due to the rectangular shape of the coil, rectangular voice coil motors can achieve higher power density and motion performance in a compact space.
2. Height Customization: The design of the rectangular voice coil motor can be customized according to specific application requirements, adapting to different load, stroke, and motion speed requirements.
3. High precision positioning: Similar to other voice coil motors, rectangular voice coil motors can achieve high-precision positioning and motion control, suitable for applications that require precise positioning.
4. Bidirectional motion: Through appropriate current control, the rectangular voice coil motor can achieve bidirectional linear motion, providing flexibility in multiple motion directions.
5. Smooth motion: Due to the design of rectangular voice coil motors, their motion is usually very smooth, which helps to avoid vibration and impact.
6. Quick Response: Compared to traditional rotary motors, rectangular voice coil motors typically have faster response times and are suitable for applications that require quick start and stop.
7. Application field: Rectangular voice coil motors can be applied in fields such as precision positioning equipment, automation systems, optical equipment, semiconductor manufacturing, and experimental equipment.

Technical Parameters:

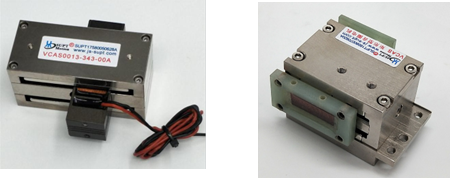

VCAS Series of Rectangular type voice coil motor
Model	Peak force(N)	Continuous force25℃(N)	Maximum travel(mm)	Voltage(V)	Back EMF constant(V/m/S)	Mover weight(g)	Width*height (mm)	Length(mm)
VCAS0002-0498-00A	2.1	1.3	49.8	11.3	1.3	16.0	42.6*33	72.0
VCAS0002-0747-00A	2.1	1.3	74.7	11.3	1.3	16.0	42.6*37	100.5
VCAS0006-0030-00A	6.1	3.2	3.0	13.3	4.6	18.2	34.1*27	25.1
VCAS0006-0099-00A	6.1	3.2	9.9	13.7	4.6	18.2	34.1*26.9	33.5
VCAS0013-0343-00A	13.0	8.0	34.3	12.6	5.8	40.0	59.9*34.8	68.3
VCAS0065-1000-00A	65.0	22.4	100.0	28.7	9.7	135.0	59.6*81.9	170.0

Applications:

The force per weight of the VCAS series rectangular actuators is lower than that of the cylindrical actuators. It has a thrust of 1000N and a relatively long round trip of up to 250mm. The VCAS series of rectangular actuators is the ideal solution for X-Y axis motion, which is primarily marketed in the semiconductor and micro machine tool industries. Linear motor actuators are ideal for applications that require high-precision, fast, and reliable linear motion. It can be used in a variety of applications, its main applications in yachts, cars, electric bicycles, drones, 3D printing, microscopy, robotics, medical breathing machines, commercial fields, etc. , make it an ideal choice for a variety of applications. This linear motor actuator is a cost-effective solution for your linear motion control needs. It is designed to provide high accuracy and superior performance. It is also easy to install and maintain.
