High Performance Mini Electric Linear Actuator High Frequency
Product Description:
The design concept and ideation for a miniature linear motor
encompass the vision of creating a compact and efficient motion
solution catering to intricate and space-constrained applications.
This design aims to amalgamate precision, versatility, and
reliability in a diminutive form factor.
Compact Form:The core principle revolves around compactness. By
minimizing the footprint and dimensions, the motor becomes
adaptable to environments where space is at a premium, facilitating
integration into miniature devices and systems.
High Precision:The design emphasizes achieving exceptional
precision in movement. Through meticulous engineering, the motor's
components are aligned to ensure minimal deviation, making it
suitable for tasks demanding accurate positioning, such as medical
procedures, optical systems, and robotics.
Efficiency and Energy Conservation: Incorporating an efficient
power conversion mechanism is pivotal. By optimizing the motor's
energy consumption and minimizing heat dissipation, the design
maximizes performance while conserving energy, which is crucial for
applications relying on battery power or low energy consumption.
Versatility: The motor's design contemplates adaptability across
diverse applications. By accommodating various control protocols,
encoders, and feedback mechanisms, the motor can be customized to
suit an array of tasks, from automation in industrial settings to
fine adjustments in scientific instruments.
Smooth Motion and Low Noise: A central aspect is ensuring smooth,
vibration-free motion. By mitigating cogging effects and employing
refined bearing systems, the motor's operation remains virtually
noiseless and maintains seamless motion, vital for precision
instruments and quiet environments.
Reliability and Durability: The motor's design philosophy
underscores long-term reliability. This involves selecting robust
materials, employing advanced sealing techniques to protect against
environmental factors, and conducting thorough testing to ensure
consistent performance over time.
The main features of the linear motor:
| E Series--MLCE(Dynamic) MLFE(Stator) |
| Model/Par | MLCE-0075-075-00 | MLCE-0135-135-00 | MLCE-0260-255-00 |
| Peak force(Fp) | N | 215 | 405 | 780 |
| Peak current(lp) | Amps | 4.8 | 4.35 | 8.1 |
| Continuous force(Fc) | N | 75 | 135 | 260 |
| Continuous current(lc) | Amps | 1.6 | 1.45 | 2.7 |
| Actuator constants(DC motor conversion/3p)(Ka) | N/W | 12.6 | 17.9 | 25.5 |
| Constant Thrust(L-L)(Kf) | N/Amps | 47.3 | 95.1 | 97.5 |
| Back EMF constant(L-L)(Kb) | V/m/sec | 27.3 | 54.9 | 54.9 |
| Electrical constant(Te) | ms | 0.35 | 0.35 | 0.35 |
| Resistance(L-L)(R) | @25℃Ω | 9.2 | 18.4 | 9.2 |
| Inductance(L-L)(l) | mh | 3.1 | 6.2 | 3.1 |
| Heat transfer coefficient(Rth) | ℃/W | **2 | **1.35 | **0.73 |
| Coil maximum temperature(Tmax) | ℃ | 120 | 120 | 120 |
| Magnet Pole pitch(2T) | mm | 30 | 30 | 30 |
| Mover weight | Kg | 0.45 | 0.82 | 1.53 |

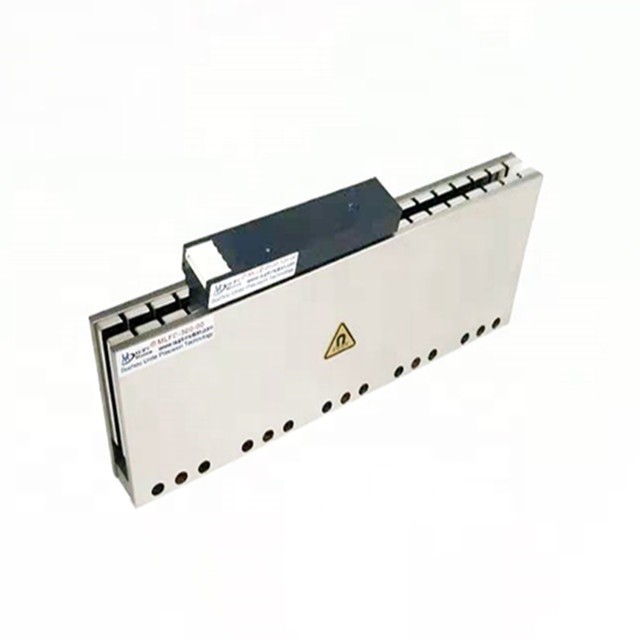

Linear motor MLCE series brushless coreless linear motor, this
model is MLCE-0135-135-00, the peak thrust is 405N, continuous
current is 1.45A, the actuator only coil without magnet, no suction
between the stator, no grooving effect, smooth operation. And with
light weight, high speed,High response, high speed,high acceleration, high frequency, high
precision postioning, high acceleration and other characteristics, smooth thrust
characteristics, with the application of grating ruler, to achieve
high precision stroke can be extended arbitrarily, quiet,
maintenance-free. Commonly used in ships, cars, electric bicycles,
are CE,ISO9001,CCC certification, widely used and semiconductor
manufacturing equipment, flat panel display industry precision
testing equipment, laser cutting, laser marking, machine vision
testing equipment, is the perfect choice for each application.
