High Speed Vcm Voice Coil Motor With Low Noise And High Reliability

Product Description:

Vcm Voice Coil Motor is a type of voltage-controlled motor that is lightweight and highly reliable yet produces low noise. It is a multi-layer coil motor that is used in a variety of applications such as linear actuators or servo systems. It has superior linearity and accuracy, making it an ideal choice for precision applications. The Vcm Voice Coil Motor has a low power consumption and is easy to install and maintain.With its high torque and low inertia, the Vcm Voice Coil Motor offers excellent performance and is ideal for applications that require high speed and precision.

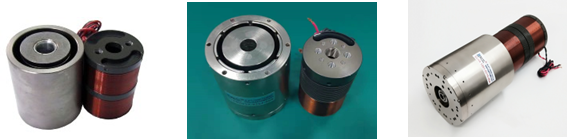

The VCAR series of Cylindrical Actuators constitute nearly 80% of the market ,they can productce a high force with a high acceleration rates.Peak Forces range for 0.7N to 3000N.Typically ,their stroke length is less than 50mm The VCAR Series Actuators Applications include valve Actuators,Z Axis pick and place,small accurate positive displacement metering pumps and both vibrators and active vibration dampening systems. Markets include Medical semiconductor,Aerospace and Automotive.

Features:

• Voltage Controlled Motor
• Linear Actuator Motor
• Linear Movement Motor
• DC Voltage
• Small Size
• Short Stroke
• Long Lifetime
• Light Weight

Technical Parameters:

Parameter	Value
Cost	Low
Motor Type	Voice Coil Motor
Noise	Low
Current	Low
Voltage	44.9V
Size	Small
Coil Type	Multi-Layer
Lifetime	Long
Resolution	High
Positioning Accuracy	High
Linear Movement Motor	Yes
Coil Voice Motor	Yes
Linear Actuator Motor	Yes

Product Model	Peak Force (N)	Continuous Force at 25℃(N)	Total Stroke (mm)	Max Voltage (V)	Back EMF Constant (V/m/s)	Weight of the coil (g)	Stator Diameter (mm)	The Length (mm)
VCAR0001-0064-00A	0.88	0.28	6.4	6.9	0.29	3	9.5	17.7
VCAR0001-0010-00A	0.73	0.42	1	4.8	0.6	2.7	24	11.2
VCAR00025-0127-00A	2.55	0.81	12.7	11.6	0.77	.6.6	12.7	24
VCAR0006-0039-00A	6.2	1.9	3.9	6.6	1.12	7.9	20	17.2
VCAR0006-0050-00A	6.2	2.6	5	15.7	3.57	8.2	25	18.2
VCAR0007-0040-00A	7.2	2.4	4	7.5	1.88	7	14.2	23
VCAR0007-0064-00A	7.8	2.5	6.4	9.9	1.5	7.2	19.1	23.8
VCAR0007-0127-00A	7.1	2.3	12.7	12.8	1.6	11.4	19.1	27
VCAR0011-0050-00A	11.4	2.1	5	11.8	3	11.2	24	17.2
VCAR0011-0100-00A	10.5	2.9	10	43.8	3.5	20	31	26.8
VCAR0013-0030-00A	13	3.5	3	16	3.5	12	25	21
VCAR0013-0072-00A	13	4.2	7.2	26.6	5.72	16.2	26.2	24.7
VCAR0014-0250-00A	14	4.5	25	26.5	3.9	35	25.4	44.2
VCAR0015-0062-00A	15	6.5	6.2	26.2	9.75	14.8	33	25.6
VCAR0022-0098-00A	22	6.6	9.8	24.7	5.8	20	34.1	35
VCAR0022-0448-00A	22	11.4	44.8	14.3	4	52	48	75.7
VCAR0025-0630-00A	25.3	8	63	50.6	5	68	31.8	83.1
VCAR0030-0150-00A	29.4	4.73	15	40.5	7.4	27	30	31
VCAR0032-0050-00A	32	8.9	5	29.3	7.1	48	40	41.7
VCAR0033-0099-00A	33	8	9.9	24.3	5.87	23.5	36	26.7
VCAR0033-0224-00A	33	13.5	22.4	26.7	6.8	69	58	72
VCAR0035-0090-00A	35	11	9	26.4	9	33	25.4	44.3
VCAR0035-0105-00A	35	15.6	10.5	11.9	5	91	50	67
VCAR0044-0040-00A	44	16.3	4	18.3	8.9	46.5	53	21.2
VCAR0044-0059-00A	44.1	17.7	5.9	14.3	8	43	46	22
VCAR0044-0075-00A	44	13.7	7.5	16.8	7.6	38.6	31.1	35.9
VCAR0044-0249-00A	44	11.7	24.9	44.9	8.88	65.9	38.1	51.3
VCAR0070-0149-00A	70	27.3	14.9	26.9	17.7	79	43	53.7
VCAR0075-0200-00A	75	30	20	26.2	15.2	65	70	38.7
VCAR0080-0129-00A	80	35	12.9	27.7	18	149	49	53.8
VCAR0087-0062-00A	87	21.67	6.2	34.5	12.7	45.2	43.1	34.9
VCAR0087-0563-00A	87	17.5	56.3	63.4	8.1	177	72	110
VCAR0105-0164-00A	105	35.4	16.1	20.1	11.5	150	60.4	40.4
VCAR0110-0380-00A	110	37.4	38	23.2	9	150	60.4	60.4
VCAR0113-0089-00A	113	35	8.9	31	17.5	125	73	27.5
VCAR0115-0065-00A	115	30.1	6.5	35	17.3	52	40	58
VCAR0130-0310-00A	130	40	31	30.4	20.5	280	75.6	56.5
VCAR0140-0150-00A	140	42.2	15	33.4	26.6	80	53	53.7
VCAR0210-0254-00A	210	66.2	25.4	56.6	28	230	43.7	111.8
VCAR0262-0112-00A	262	111	11.2	35.1	41	285	71	64
VCAR0262-0249-00A	262	112	24.9	28.2	26	785	66	109.1
VCAR0294-0498-00A	294	56.8	49.8	114	24.5	685	93	136.9
VCAR0436-0187-00A	436	147.6	18.7	40.7	40.7	648	80.4	91
VCAR0436-0250-00A	436	167	25	31.6	37.2	775	78.4	110
VCAR0436-0373-00A	436	142.6	37.3	38	29.8	1050	76	163
VCAR0980-0249-00A	980	605	24.9	41.5	104	1426	126	134.5
VCAR1351-0310-00A	1351	376.8	31	73.5	68	1071	110	143.7

Applications:

SUPT MOTION VCAR Series Vcm Voice Coil Motor provides excellent performance for motion control applications with its high reliability, low noise, high resolution, and high positioning accuracy. This linear actuator motor is voltage controlled, and provides a DC voltage source. With its ISO9001 certification, it is of top-notch quality, and can be purchased with a minimum order quantity of one. It is delivered in a carton packaging within general 5-7 days delivery, fast 3-5 days, bulk to be negotiated, and can be paid for with T/T.The price for this coil voice motor is $117, and SUPT MOTION has the capacity to fulfill customer’s needs.

Widely used in medical, conductor,aerospace, valve control, vibration platform And automation industry area. Modular design, can be customized.

Suzhou Unite Precision Machinery Technology Co., Ltd.(Supt Motion) is a high-tech enterprise specializing in the design, manufacturing, and sales of voice coil actuator, linear motors, and precision linear motion platforms. The company produces high-quality and high-performance voice coil actuator, linear motors, and precision linear motion platforms using domestic and foreign front-end technology and testing methods, which can provide precise direct drive control solutions and customized products for domestic and foreign customers.

The company has an experienced technical team in the industry with over 13 years of experience in precision linear motion design, and its products have obtained over 30 patent technology certifications. We can develop high-performance and high-quality products that meet customer requirements based on their actual needs.

The company implements advanced front-end design and process standards both domestically and internationally, has a complete and effective quality assurance system, and strictly implements the ISO 9001 quality management system for standardized production. The testing equipment is complete, and it can conduct comprehensive testing of product performance, effectively ensuring product quality. The company has multiple certifications such as iso9001, CE, and ROHS.

Our tenet: High quality is our pursuit, and customer satisfaction is our commitment.

We will continue to improve in technology Strive for perfection in the quality, We will ensure that our high quality and inexpensive products are satisfied ,Make it has stronger competitiveness.

The company has successfully served over 2000+ domestic and foreign customers, winning market reputation with export quality and Perfect service. We provide high-quality voice coil actuators, linear motors, and precision linear motion platform series products for numerous brand enterprises, widely used in intelligent equipment fields such as semiconductors, optical systems, biomedicine, vibration control, valve control, precision machining, 3C, new energy batteries, automotive electronics, packaging, printing, aerospace, image processing automation, etc.
