High Force Output Linear Coil Actuator High Repeatability Linear Voice Coil

Ask Lasest Price
Brand Name :	SUPT MOTION
Model Number :	VCAH0253-0120-00A
Price :	$105-$130
Payment Terms :	T/T
Supply Ability :	To be negotiated
Delivery Time :	1-5pcs ,5 days . >30pcs ,To be negotiated
Certification :	ce,ISO9001

Add to Cart

Product Details
Company Profile

High Force Output Linear Coil Actuator High Repeatability Linear Voice Coil

High Force Output Linear Voice Coil Product with High Repeatability and Positioning Accuracy

Product Description:

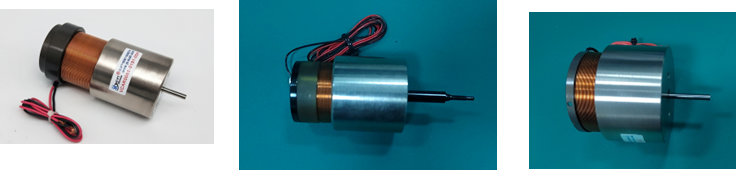

Our Linear Voice Coil Motor is a precision linear device used to provide motion control in a variety of applications. With a voltage range of 42.7, this Linear Voice Coil Motor is capable of providing low power consumption and high positioning accuracy. Our Linear Voice Coil Motor model number VCAH0253-0120-00A is a reliable and affordable choice for customers looking for linear motion control solutions.

Built in motion shaft and precision linear bearing. The moving shaft is made of light, high rigidity and wear-resistant,high-quality materials. It is widely used in semiconductor, precision test and detection,valve flow control field.

Features:

Product Name: Linear Voice Coil Motor
Power Consumption: Low
Force Output: High
Voltage Range: 42.7
Repeatability: High
Speed Range: High Speed

Technical Parameters:

Attributes	Value
Product Type	Linear Voice Coil Motor
Model Number	VCAH0253-0120-00A
Stroke Length	12
Speed Range	High Speed
Noise Level	Low
Voltage Range	42.7
Current Range	4.2
Linearity	High
Resolution	High
Repeatability	High

Product Model	Peak Force (N)	Continuous Force at 25℃(N)	Total Stroke (mm)	Max Voltage (V)	Back EMF Constant (V/m/s)	Weight of the coil (g)	Stator Diameter	Shaft end thread (mm)
VCAB0005-0039-00A	5	1.5	3	5.4	0.9	23	29.5	M2(Outer)
VCAB0005-0050-00A	5	2.2	3.9	14.5	3.1	27	31.5	M2.5(Outer)
VCAB0013-0072-00A	13	4.2	7.2	26.6	5.72	16.2	26.2	M3(Outer)
VCAB0015-0062-00A	15	6.5	6.2	26.2	9.75	14.8	33	M3(Outer)
VCAB0015-0127-00A	15	4.9	12.7	21.5	4.1	12.5	30.5	Shaft ∮4.8
VCAB0022-0098-00A	22	6.6	9.8	24.7	5.8	20	34.1	M3(Outer)
VCAB0022-0448-00A	22	11.4	44.8	14.3	4	52	48	M3(Inner)
VCAB0032-0050-00A	32	8.9	5	29.3	7.1	48	40	M3(Inner)
VCAB0033-0099-00A	33	8	9.9	24.3	5.87	23.5	36	M3(Outer)
VCAB0033-0224-00A	33	13.5	22.4	26.7	6.8	69	58	M3(Inner)
VCAB0035-0105-00A	35	15.6	10.5	11.9	5	91	50	M3(Inner)
VCAB0044-0040-00A	44	16.3	4	18.3	8.9	46.5	53	M3(Inner)
VCAB0044-0059-00A	44.1	17.7	5.9	14.3	8	43	46	M3(Inner)
VCAB0044-0075-00A	44	13.7	7.5	16.8	7.6	38.6	31.1	M3(Outer)
VCAB0044-0249-00A	44	11.7	24.9	44.9	8.88	65.9	38.1	M3(Inner)
VCAB0070-0149-00A	70	27.3	14.9	26.9	17.7	79	43	M3(Inner)
VCAB0087-0062-00A	87	21.67	6.2	34.5	12.7	45.2	43.1	M3(Inner)
VCAB0087-0563-00A	87	17.5	56.3	63.4	8.1	177	72	shaft ∮10
VCAB0088-0191-00A	88.5	23.2	19.1	29.9	8	162	50.8	M3(Inner)
VCAB0105-0164-00A	105	35.4	16.1	20.1	11.5	150	60.4	M3(Inner)
VCAB0113-0089-00A	113	35	8.9	31	17.5	125	73	shaft ∮8
VCAB0262-0112-00A	262	111	11.2	35.1	41	285	71	shaft ∮10
VCAB0262-0249-00A	262	112	24.9	28.2	26	785	66	shaft ∮8
VCAB0294-0498-00A	294	56.8	49.8	114	24.5	685	93	shaft ∮10
VCAB0436-0187-00A	436	147.6	18.7	40.7	40.7	648	80.4	shaft ∮10
VCAB0436-0250-00A	436	167	25	31.6	37.2	775	78.4	shaft ∮10
VCAB0445-0300-00A	445	185	30	33	35	920	76.2	shaft ∮10

Applications:

SUPT MOTION's VCAH Series Linear Voice Coil Motor is the ideal choice for applications requiring high speed, low power consumption, and high force output. This linear voice coil product can be used for a variety of applications, from robotics to industrial automation, providing precise motion control with great accuracy and reliability.
This linear voice coil device can be used for highly precise positioning and motion control applications, such as in automotive, aerospace, and medical industries. Its low power consumption and high force output make it ideal for applications such as machine tools and machining centers. Additionally, it can be used in industrial automation, where precise and accurate control is needed for processes such as welding and assembly. Its high speed range and low power consumption make it suitable for applications such as robotics and medical imaging.
Its high load capacity and excellent performance make it a great choice for applications such as 3D printing and multi-axis control.
