VCAB Series Linear Voice Coil Actuator With High Force Output

Product Description:

Our Linear Voice Coil Motor is the perfect solution for high-end industrial applications. It is a powerful and reliable Linear Voice Coil Product that is designed to offer high performance, reliability and accuracy. With a rated speed of 100HZ(RPM), rated power of 2500N, high resolution, current range of 4.2A and low power consumption, our Linear Voice Coil Device is the ideal choice for demanding industrial applications.

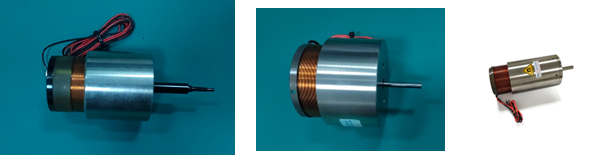

Built in motion shaft and precision linear bearing. The moving shaft is made of light, high rigidity and wear-resistant. It is widely used in semiconductor, precision test and detection,valve flow control field.

Features:

• Product Name: Linear Voice Coil System
• Model Number: VCAH Series
• Rated Power: 2500N
• Resolution: High
• Voltage Range: 24V
• Load Capacity: High

Technical Parameters:

Parameter	Values
Product Type	Linear Voice Coil Motor With Shaft
Model Number	VCAB0033-0099-00A
Stroke Length	12mm
Rated Speed	100HZ(RPM)
Linearity	High
Load Capacity	High
Positioning Accuracy	High
Noise Level	Low
Power Consumption	Low
Force Output	High

Product Model	Peak Force (N)	Continuous Force at 25℃(N)	Total Stroke (mm)	Max Voltage (V)	Back EMF Constant (V/m/s)	Weight of the coil (g)	Stator Diameter	Shaft end thread (mm)
VCAB0005-0039-00A	5	1.5	3	5.4	0.9	23	29.5	M2(Outer)
VCAB0005-0050-00A	5	2.2	3.9	14.5	3.1	27	31.5	M2.5(Outer)
VCAB0013-0072-00A	13	4.2	7.2	26.6	5.72	16.2	26.2	M3(Outer)
VCAB0015-0062-00A	15	6.5	6.2	26.2	9.75	14.8	33	M3(Outer)
VCAB0015-0127-00A	15	4.9	12.7	21.5	4.1	12.5	30.5	Shaft ∮4.8
VCAB0022-0098-00A	22	6.6	9.8	24.7	5.8	20	34.1	M3(Outer)
VCAB0022-0448-00A	22	11.4	44.8	14.3	4	52	48	M3(Inner)
VCAB0032-0050-00A	32	8.9	5	29.3	7.1	48	40	M3(Inner)
VCAB0033-0099-00A	33	8	9.9	24.3	5.87	23.5	36	M3(Outer)
VCAB0033-0224-00A	33	13.5	22.4	26.7	6.8	69	58	M3(Inner)
VCAB0035-0105-00A	35	15.6	10.5	11.9	5	91	50	M3(Inner)
VCAB0044-0040-00A	44	16.3	4	18.3	8.9	46.5	53	M3(Inner)
VCAB0044-0059-00A	44.1	17.7	5.9	14.3	8	43	46	M3(Inner)
VCAB0044-0075-00A	44	13.7	7.5	16.8	7.6	38.6	31.1	M3(Outer)
VCAB0044-0249-00A	44	11.7	24.9	44.9	8.88	65.9	38.1	M3(Inner)
VCAB0070-0149-00A	70	27.3	14.9	26.9	17.7	79	43	M3(Inner)
VCAB0087-0062-00A	87	21.67	6.2	34.5	12.7	45.2	43.1	M3(Inner)
VCAB0087-0563-00A	87	17.5	56.3	63.4	8.1	177	72	shaft ∮10
VCAB0088-0191-00A	88.5	23.2	19.1	29.9	8	162	50.8	M3(Inner)
VCAB0105-0164-00A	105	35.4	16.1	20.1	11.5	150	60.4	M3(Inner)
VCAB0113-0089-00A	113	35	8.9	31	17.5	125	73	shaft ∮8
VCAB0262-0112-00A	262	111	11.2	35.1	41	285	71	shaft ∮10
VCAB0262-0249-00A	262	112	24.9	28.2	26	785	66	shaft ∮8
VCAB0294-0498-00A	294	56.8	49.8	114	24.5	685	93	shaft ∮10
VCAB0436-0187-00A	436	147.6	18.7	40.7	40.7	648	80.4	shaft ∮10
VCAB0436-0250-00A	436	167	25	31.6	37.2	775	78.4	shaft ∮10
VCAB0445-0300-00A	445	185	30	33	35	920	76.2	shaft ∮10

Applications:

SUPT MOTION's VCAB Series Linear Voice Coil Motor is a reliable and cost-effective linear motion device that offers high force output and repeatability. This product is certified by ISO9001 and made in Jiangsu Province, China. This Linear Voice Coil Motor has a minimum order quantity of 1 and prices range from $121. It is packaged in a carton and delivery time is 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated. Payment terms are T/T and supply ability is subject to interview. Its rated speed is 100HZ(RPM) and current range is 4.2A, with voltage range of 24V.

The VCAR series of Cylindrical Actuators constitute nearly 80% of the market ,they can productce a high force with a high acceleration rates.Peak Forces range for 0.7N to 3000N.Typically ,their stroke length is less than 50mm The VCAR Series Actuators Applications include valve Actuators,Z Axis pick and place,small accurate positive displacement metering pumps and both vibrators and active vibration dampening systems. Markets include Medical semiconductor,Aerospace and Automotive.

Suzhou Unite Precision Machinery Technology Co., Ltd.(Supt Motion) is a high-tech enterprise specializing in the design, manufacturing, and sales of voice coil actuator, linear motors, and precision linear motion platforms. The company produces high-quality and high-performance voice coil actuator, linear motors, and precision linear motion platforms using domestic and foreign front-end technology and testing methods, which can provide precise direct drive control solutions and customized products for domestic and foreign customers.

The company has an experienced technical team in the industry with over 13 years of experience in precision linear motion design, and its products have obtained over 30 patent technology certifications. We can develop high-performance and high-quality products that meet customer requirements based on their actual needs.

The company implements advanced front-end design and process standards both domestically and internationally, has a complete and effective quality assurance system, and strictly implements the ISO 9001 quality management system for standardized production. The testing equipment is complete, and it can conduct comprehensive testing of product performance, effectively ensuring product quality. The company has multiple certifications such as iso9001, CE, and ROHS.

Our tenet: High quality is our pursuit, and customer satisfaction is our commitment.

We will continue to improve in technology Strive for perfection in the quality, We will ensure that our high quality and inexpensive products are satisfied ,Make it has stronger competitiveness.

The company has successfully served over 2000+ domestic and foreign customers, winning market reputation with export quality and Perfect service. We provide high-quality voice coil actuators, linear motors, and precision linear motion platform series products for numerous brand enterprises, widely used in intelligent equipment fields such as semiconductors, optical systems, biomedicine, vibration control, valve control, precision machining, 3C, new energy batteries, automotive electronics, packaging, printing, aerospace, image processing automation, etc.
