Product Description:
The semi-closed shaft voice coil motor is a special type of voice
coil motor with a unique structural design. It consists of a
semi-enclosed housing with the shaft system and voice coil motor
assembly mounted inside. This design allows the motor to remain
compact while effectively protecting the critical components
inside.
The external structure of this type of motor is usually
semi-enclosed, which means that the internal components such as the
shaft system and motor parts are protected to some extent from the
external environment such as dust and liquids.
It also usually includes a shaft and a corresponding drive system
for converting the motion of the motor into linear motion. The
design and material selection of the shaft is critical to the
performance and accuracy of the motor.
Semi-hermetic shaft motors also have a voice coil motor assembly
inside. The voice coil motor generates force through the
interaction of an electric current and a magnetic field to drive
the belt shaft system.
Due to the nature of the shaft system, the Semi-Closed Shaft Voice
Coil Motor offers superior positioning accuracy. It can precisely
control and adjust the position in the micron range, making it
suitable for applications that require high precision motion.
The structural design of the semi-hermetic voice coil motor with
shaft makes it suitable for use in many fields, including
semiconductor manufacturing, precision machining, optical systems,
and automation equipment. It plays a vital role in these areas,
enabling precise motion control and positioning requirements.
Technical Parameters:
| Product Model | Peak Force
(N) | Continuous Force
at 25℃(N) | Total Stroke
(mm) | Max Voltage
(V) | Back EMF Constant
(V/m/s) | Weight of the coil
(g) | Stator Diameter | Shaft end thread
(mm) |
| VCAB0005-0039-00A | 5 | 1.5 | 3 | 5.4 | 0.9 | 23 | 29.5 | M2(Outer) |
| VCAB0005-0050-00A | 5 | 2.2 | 3.9 | 14.5 | 3.1 | 27 | 31.5 | M2.5(Outer) |
| VCAB0013-0072-00A | 13 | 4.2 | 7.2 | 26.6 | 5.72 | 16.2 | 26.2 | M3(Outer) |
| VCAB0015-0062-00A | 15 | 6.5 | 6.2 | 26.2 | 9.75 | 14.8 | 33 | M3(Outer) |
| VCAB0015-0127-00A | 15 | 4.9 | 12.7 | 21.5 | 4.1 | 12.5 | 30.5 | Shaft ∮4.8 |
| VCAB0022-0098-00A | 22 | 6.6 | 9.8 | 24.7 | 5.8 | 20 | 34.1 | M3(Outer) |
| VCAB0022-0448-00A | 22 | 11.4 | 44.8 | 14.3 | 4 | 52 | 48 | M3(Inner) |
| VCAB0032-0050-00A | 32 | 8.9 | 5 | 29.3 | 7.1 | 48 | 40 | M3(Inner) |
| VCAB0033-0099-00A | 33 | 8 | 9.9 | 24.3 | 5.87 | 23.5 | 36 | M3(Outer) |
| VCAB0033-0224-00A | 33 | 13.5 | 22.4 | 26.7 | 6.8 | 69 | 58 | M3(Inner) |
| VCAB0035-0105-00A | 35 | 15.6 | 10.5 | 11.9 | 5 | 91 | 50 | M3(Inner) |
| VCAB0044-0040-00A | 44 | 16.3 | 4 | 18.3 | 8.9 | 46.5 | 53 | M3(Inner) |
| VCAB0044-0059-00A | 44.1 | 17.7 | 5.9 | 14.3 | 8 | 43 | 46 | M3(Inner) |
| VCAB0044-0075-00A | 44 | 13.7 | 7.5 | 16.8 | 7.6 | 38.6 | 31.1 | M3(Outer) |
| VCAB0044-0249-00A | 44 | 11.7 | 24.9 | 44.9 | 8.88 | 65.9 | 38.1 | M3(Inner) |

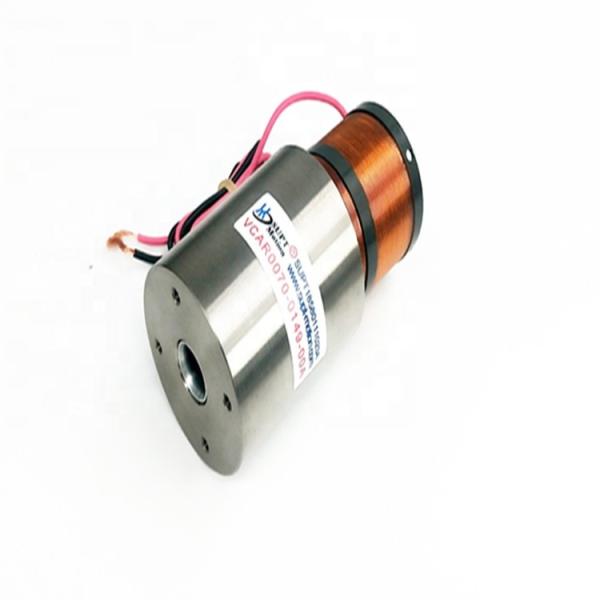

| VCAB0070-0149-00A | 70 | 27.3 | 14.9 | 26.9 | 17.7 | 79 | 43 | M3(Inner) |
| VCAB0087-0062-00A | 87 | 21.67 | 6.2 | 34.5 | 12.7 | 45.2 | 43.1 | M3(Inner) |
| VCAB0087-0563-00A | 87 | 17.5 | 56.3 | 63.4 | 8.1 | 177 | 72 | shaft ∮10 |
| VCAB0088-0191-00A | 88.5 | 23.2 | 19.1 | 29.9 | 8 | 162 | 50.8 | M3(Inner) |
| VCAB0105-0164-00A | 105 | 35.4 | 16.1 | 20.1 | 11.5 | 150 | 60.4 | M3(Inner) |
| VCAB0113-0089-00A | 113 | 35 | 8.9 | 31 | 17.5 | 125 | 73 | shaft ∮8 |
| VCAB0262-0112-00A | 262 | 111 | 11.2 | 35.1 | 41 | 285 | 71 | shaft ∮10 |
| VCAB0262-0249-00A | 262 | 112 | 24.9 | 28.2 | 26 | 785 | 66 | shaft ∮8 |
| VCAB0294-0498-00A | 294 | 56.8 | 49.8 | 114 | 24.5 | 685 | 93 | shaft ∮10 |
| VCAB0436-0187-00A | 436 | 147.6 | 18.7 | 40.7 | 40.7 | 648 | 80.4 | shaft ∮10 |
| VCAB0436-0250-00A | 436 | 167 | 25 | 31.6 | 37.2 | 775 | 78.4 | shaft ∮10 |
| VCAB0445-0300-00A | 445 | 185 | 30 | 33 | 35 | 920 | 76.2 | shaft ∮10 |
Applications:
The VCAB series voice coil motor is a kind of linear direct drive
motor, which has the characteristics of light weight, small volume,
short response time, high frequency, high precision and high
acceleration. Provides high resolution, high repeatability, high
speed (RPM) , sports shaft made of lightweight, high stiffness,
wear-resistant materials. It is a voice coil motor with built-in
motion shaft and precision linear bearing, providing superior
performance and accuracy. It is widely used in Semiconductor
industry, valve operation, and micro-machinery industries, medical
areas such as respiratory equipment, aerospace technology, and to
ensure the provision of reliable performance ,The Linear Voice Coil System is a highly efficient, cost-effective
linear motor that provides accurate position repeatability and low
noise levels.
Our Services
Technical indicators & specifications can be customized
Satisfactory after-sales service
FAQ
1.Travel: effective travel, used to calculate the the total travel of value force.
2.The direction of movement: horizontal or vertical installation 90 degree.
3.Load force: constant in the reverse direction of force on the motor, such as springs, etc.
4.Load weight: the total quality part of movement, including the
quality slider
5.Movement Type: 1.point to point movement; 2.the reciprocation of the rule (e.g. scanning).
6.Velocity curve: 1.a trapezoidal speed curve; 2.triangular speed curve; 3.sine speed curve.
