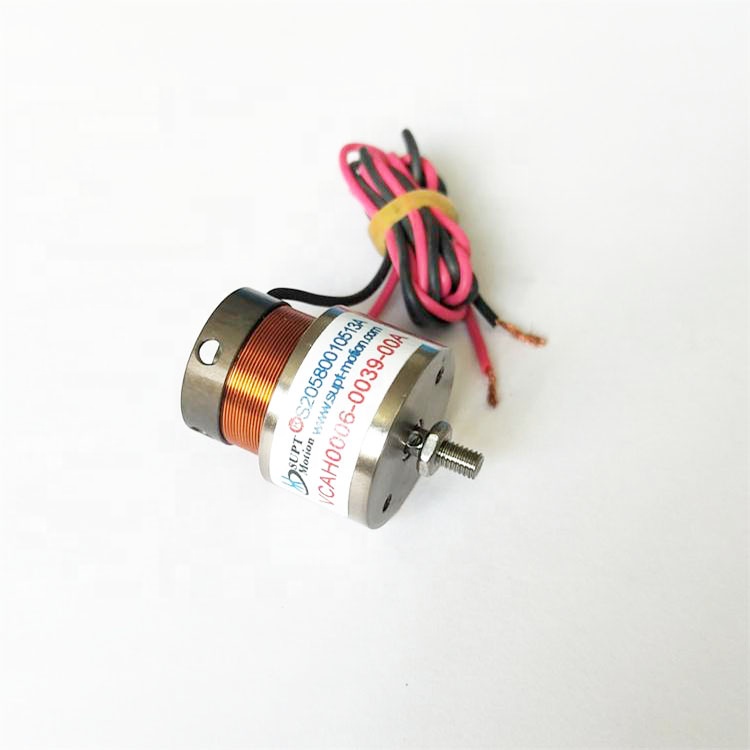

    High-Precision Custom High Frequency Voice Coil Motor With Bearing For Valve Operation

    Ask Lasest Price
    Brand Name : SUPT Motion
    Model Number : VCAR0006-0039-00A
    Certification : CCC, ce, RoHS, ISO9001
    Price : $112.00/pieces 1-29 pieces
    Payment Terms : T/T
    Supply Ability : Negotiable
    Delivery Time : 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated
    • Product Details
    • Company Profile

    High-Precision Custom High Frequency Voice Coil Motor With Bearing For Valve Operation

    High-Precision Custom High Frequency Voice Coil Motor With Bearing


    Product Description

    The semi-enclosed belt-driven voice coil motor with integrated bearings exhibits several distinct characteristics that make it valuable for various applications, particularly in valve operation contexts.


    1. Semi-Enclosed Design: The semi-enclosed structure offers a balance between protection and accessibility. It safeguards internal components while allowing ease of maintenance and integration.

    2. Integrated Bearings: The inclusion of bearings reduces friction, ensuring smooth and efficient motion. Bearings enhance stability, minimize wear, and contribute to accurate positioning.

    3. Precise Positioning: The motor provides high-precision positioning due to its direct-drive mechanism, enabling accurate valve adjustments and control.

    4. Rapid Response: The motor's design enables quick response times, allowing valves to be opened or closed promptly, improving system efficiency.

    5. Compact Size: Its compact design facilitates integration into tight spaces, making it suitable for applications where space is limited.

    6. Reliability: Integrated bearings and careful design contribute to the motor's reliability and longevity, minimizing downtime for maintenance.


    Technical Parameters:

    Product ModelPeak Force
    (N)
    Continuous Force
    at 25℃(N)
    Total Stroke
    (mm)
    Max Voltage
    (V)
    Back EMF Constant
    (V/m/s)
    Weight of the coil
    (g)
    Stator DiameterShaft end thread
    (mm)
    VCAB0005-0039-00A51.535.40.92329.5M2(Outer)
    VCAB0005-0050-00A52.23.914.53.12731.5M2.5(Outer)
    VCAB0013-0072-00A134.27.226.65.7216.226.2M3(Outer)
    VCAB0015-0062-00A156.56.226.29.7514.833M3(Outer)
    VCAB0015-0127-00A154.912.721.54.112.530.5Shaft ∮4.8
    VCAB0022-0098-00A226.69.824.75.82034.1M3(Outer)
    VCAB0022-0448-00A2211.444.814.345248M3(Inner)
    VCAB0032-0050-00A328.9529.37.14840M3(Inner)
    VCAB0033-0099-00A3389.924.35.8723.536M3(Outer)
    VCAB0033-0224-00A3313.522.426.76.86958M3(Inner)
    VCAB0035-0105-00A3515.610.511.959150M3(Inner)
    VCAB0044-0040-00A4416.3418.38.946.553M3(Inner)
    VCAB0044-0059-00A44.117.75.914.384346M3(Inner)
    VCAB0044-0075-00A4413.77.516.87.638.631.1M3(Outer)
    VCAB0044-0249-00A4411.724.944.98.8865.938.1M3(Inner)
    VCAB0070-0149-00A7027.314.926.917.77943M3(Inner)
    VCAB0087-0062-00A8721.676.234.512.745.243.1M3(Inner)
    VCAB0087-0563-00A8717.556.363.48.117772shaft ∮10
    VCAB0088-0191-00A88.523.219.129.9816250.8M3(Inner)
    VCAB0105-0164-00A10535.416.120.111.515060.4M3(Inner)
    VCAB0113-0089-00A113358.93117.512573shaft ∮8
    VCAB0262-0112-00A26211111.235.14128571shaft ∮10
    VCAB0262-0249-00A26211224.928.22678566shaft ∮8
    VCAB0294-0498-00A29456.849.811424.568593shaft ∮10
    VCAB0436-0187-00A436147.618.740.740.764880.4shaft ∮10
    VCAB0436-0250-00A4361672531.637.277578.4shaft ∮10
    VCAB0445-0300-00A44518530333592076.2shaft ∮10

    Applications:

    The VCAB series linear voice coil motor is the perfect solution for high-end industrial applications. This is a powerful and reliable linear voice coil product designed to provide high performance, reliability and accuracy. High Frequency, light weight, high speed, long life, high precision, high resolution, no wear.

    The main application of a voice coil motor:
    1.Semiconductor industry:Wiring, cutting, drilling, transportation systems, welding,robotics.

    2.Valve operation in the field:Type metering valves, pressure test systems, pneumatic valve chemistry

    injection system.

    3.Micro Machine industry:Feed systems, micro drilling, precision stamping.
    4.Vibration System:Shaking table, vibration platform.
    5.Medical field:Micro-injection system, respiratory equipment, testing equipment.
    6.Aviation Technology:Flight control system, pilot feedback system.
    7.Commercial use field:Computer cooling pump miniature camera auto focus system.
    8.Automation industry:Laser equipment,dispenser, test equipment, textile machinery.

    High-Precision Custom High Frequency Voice Coil Motor With Bearing For Valve Operation


    Our Services

    We are happy to assist a custom design.
