High Accuracy Linear Voice Coil Motor Brushless Direct Drive Motor With Shaft

Ask Lasest Price
Brand Name :	SUPT
Model Number :	VCAR0044-0075-00A
Certification :	CCC, ce, ISO9001
Supply Ability :	2000 Piece/Pieces per Month voice coil motor magnets
Price :	$120.00/pieces >=1 pieces
Payment Terms :	T/T
Delivery Time :	1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated

Add to Cart

Product Details
Company Profile

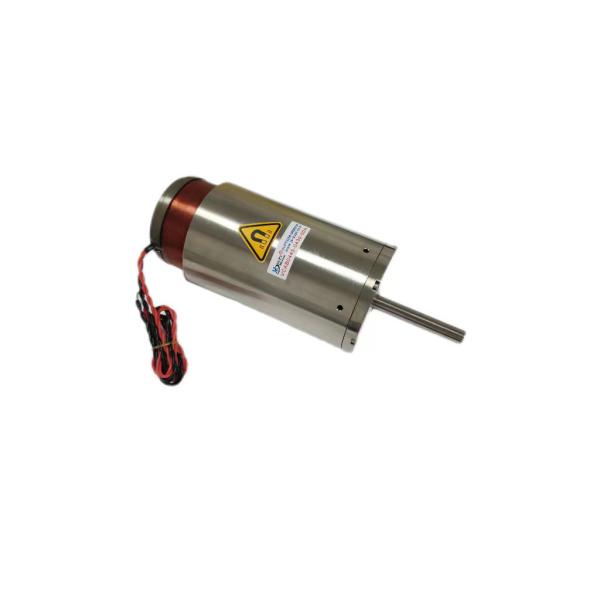

High Accuracy Linear Voice Coil Motor Brushless Direct Drive Motor With Shaft

Brushless Direct Drive Motor With Shaft High-Accuracy Small Size

Product Description

Linear voice coil motor with built-in kinematic shaft and precision linear bearings, the kinematic shaft is made of lightweight, highly rigid and wear-resistant materials.

Widely used in semiconductor, precision testing and inspection, valve flow control and other fields.

Brushless shaft direct drive motors enable efficient motion control and precise positioning of the robot.

Brushless shaft direct drive motors control the magnetic field generated by the internal permanent magnets by regulating the current, thus directly driving the motor rotor to rotate. Multiple brushless direct-drive motors with shafts can be used in the joints of the robot to realize various degrees of freedom of motion.

Due to the direct drive nature of the brushless shaft direct drive motors, they provide highly accurate position control. Robots can utilize this feature to achieve precise position and attitude control, such as positioning a tool or end effector to a specific target position.

Brushless shaft direct drive motors are characterized by fast response which is important for robotic tasks that require fast movement or high speed operation.

Brushless shaft direct drive motors can be integrated with encoders to provide precise feedback signals by monitoring the position of the motor rotor, enabling closed-loop control.

Brushless shaft direct drive motors offer efficient energy conversion, which reduces energy consumption and also reduces the amount of heat generated by the robot. They are also characterized by low noise levels, making the robot quieter during operation.

The main application of a voice coil motor:

1.Semiconductor industry:Wiring, cutting, drilling, transportation systems, welding,robotics.

2.Valve operation in the field:Type metering valves, pressure test systems, pneumatic valve chemistry

injection system.

3.Micro Machine industry:Feed systems, micro drilling, precision stamping.

4.Vibration System:Shaking table, vibration platform.

5.Medical field:Micro-injection system, respiratory equipment, testing equipment.

6.Aviation Technology:Flight control system, pilot feedback system.

7.Commercial use field:Computer cooling pump miniature camera auto focus system.

8.Automation industry:Laser equipment,dispenser, test equipment, textile machinery.

Technical Parameters:

Product Model	Peak Force (N)	Continuous Force at 25℃(N)	Total Stroke (mm)	Max Voltage (V)	Back EMF Constant (V/m/s)	Weight of the coil (g)	Stator Diameter	Shaft end thread (mm)
VCAB0005-0039-00A	5	1.5	3	5.4	0.9	23	29.5	M2(Outer)
VCAB0005-0050-00A	5	2.2	3.9	14.5	3.1	27	31.5	M2.5(Outer)
VCAB0013-0072-00A	13	4.2	7.2	26.6	5.72	16.2	26.2	M3(Outer)
VCAB0015-0062-00A	15	6.5	6.2	26.2	9.75	14.8	33	M3(Outer)

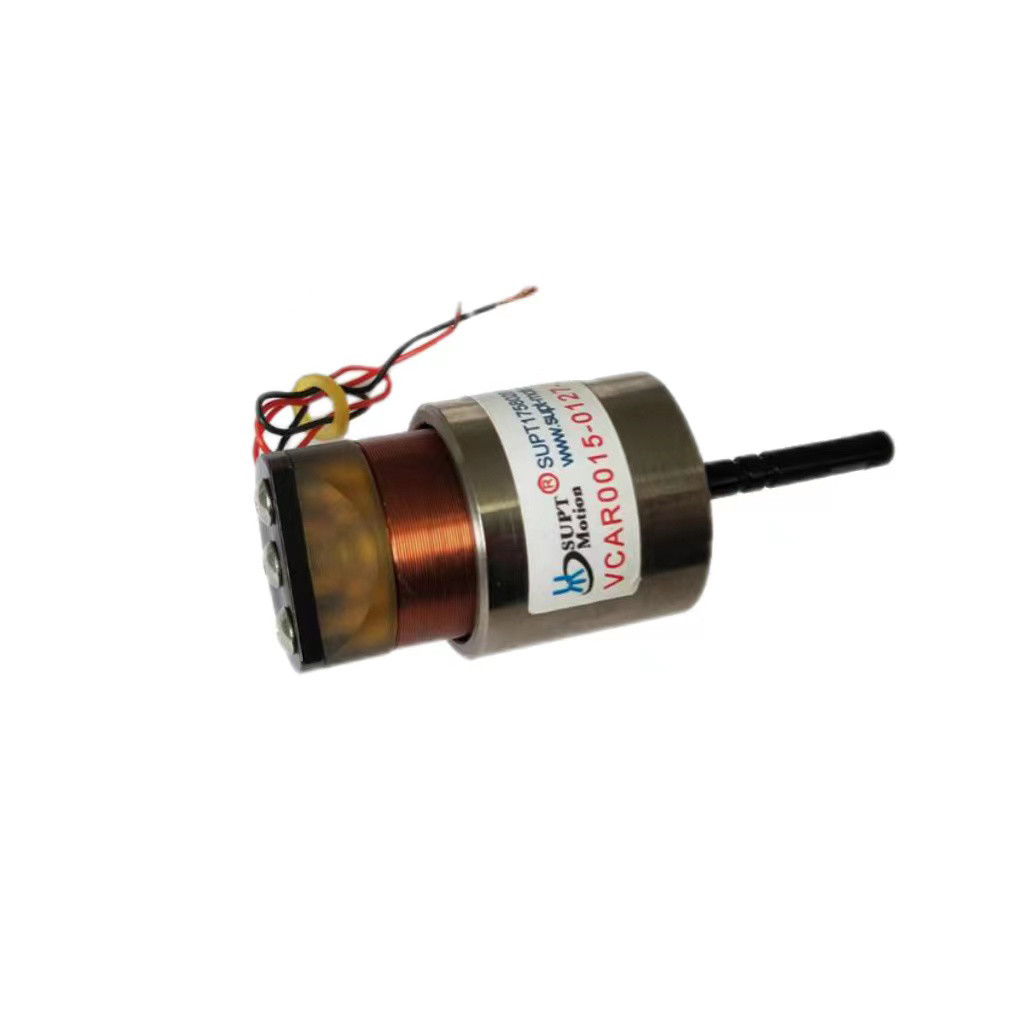

VCAB0015-0127-00A	15	4.9	12.7	21.5	4.1	12.5	30.5	Shaft ∮4.8
VCAB0022-0098-00A	22	6.6	9.8	24.7	5.8	20	34.1	M3(Outer)
VCAB0022-0448-00A	22	11.4	44.8	14.3	4	52	48	M3(Inner)
VCAB0032-0050-00A	32	8.9	5	29.3	7.1	48	40	M3(Inner)
VCAB0033-0099-00A	33	8	9.9	24.3	5.87	23.5	36	M3(Outer)
VCAB0033-0224-00A	33	13.5	22.4	26.7	6.8	69	58	M3(Inner)
VCAB0035-0105-00A	35	15.6	10.5	11.9	5	91	50	M3(Inner)
VCAB0044-0040-00A	44	16.3	4	18.3	8.9	46.5	53	M3(Inner)
VCAB0044-0059-00A	44.1	17.7	5.9	14.3	8	43	46	M3(Inner)
VCAB0044-0075-00A	44	13.7	7.5	16.8	7.6	38.6	31.1	M3(Outer)
VCAB0044-0249-00A	44	11.7	24.9	44.9	8.88	65.9	38.1	M3(Inner)
VCAB0070-0149-00A	70	27.3	14.9	26.9	17.7	79	43	M3(Inner)
VCAB0087-0062-00A	87	21.67	6.2	34.5	12.7	45.2	43.1	M3(Inner)
VCAB0087-0563-00A	87	17.5	56.3	63.4	8.1	177	72	shaft ∮10
VCAB0088-0191-00A	88.5	23.2	19.1	29.9	8	162	50.8	M3(Inner)
VCAB0105-0164-00A	105	35.4	16.1	20.1	11.5	150	60.4	M3(Inner)
VCAB0113-0089-00A	113	35	8.9	31	17.5	125	73	shaft ∮8
VCAB0262-0112-00A	262	111	11.2	35.1	41	285	71	shaft ∮10
VCAB0262-0249-00A	262	112	24.9	28.2	26	785	66	shaft ∮8
VCAB0294-0498-00A	294	56.8	49.8	114	24.5	685	93	shaft ∮10
VCAB0436-0187-00A	436	147.6	18.7	40.7	40.7	648	80.4	shaft ∮10
VCAB0436-0250-00A	436	167	25	31.6	37.2	775	78.4	shaft ∮10
VCAB0445-0300-00A	445	185	30	33	35	920	76.2	shaft ∮10

Applications:

The linear voice coil motor system is a high-efficiency linear motor that provides accurate position repeatability and low noise levels. Built-in motion shaft and precision linear bearing. The sports shaft is made of light weight, high rigidity and wear-resistant material. High quality material. Widely used in semiconductor, medical equipment, precision testing and detection, valve flow control and other fields. Voice coil motor with built-in motion shaft and precision linear bearing. The sports shaft is made of lightweight, high stiffness and wear-resistant materials. The moving ring has the advantages of light weight, small volume, short response time, high frequency and high precision.
