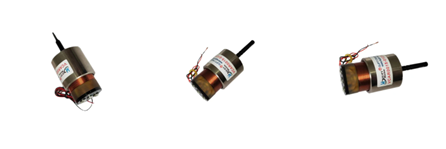

    2500N Linear Voice Coil Motor Low Power Consumption Moving Magnet Voice Coil Actuator

    Ask Lasest Price
    Brand Name : SUPT MOTION
    Model Number : VCAB Series
    Certification : ISO9001
    Price : $119
    Delivery Time : General 5-7 days delivery, fast 3-5 days, bulk to be negotiated
    Payment Terms : T/T
    Supply Ability : Interview
    • Product Details
    • Company Profile

    2500N Linear Voice Coil Motor Low Power Consumption Moving Magnet Voice Coil Actuator

    Low Power Consumption 2500N Linear Voice Coil Motor

    Product Description:

    The Linear Voice Coil Motor offers you a reliable and efficient linear motion solution. Featuring a high degree of precision and accuracy, the Linear Voice Coil System is designed to meet the needs of a variety of industries. With its Linear Voice Coil Device, it is capable of providing a high level of positioning accuracy. The Linear Voice Coil Device With High Positioning Accuracy is ideal for applications where accuracy is critical. The VCAB Series model number is rated at 2500N and has a current range of 1.2A. This Linear Voice Coil Motor is designed to provide superior performance while being reliable and cost-effective.

    Built in motion shaft and precision linear bearing. The moving shaft is made of light, high rigidity and wear-resistant. It is widely used in semiconductor, precision test and detection,valve flow control field.

    Features:

    • Linear Voice Coil Motor:
    • Stroke Length:3mm
    • Linearity: High
    • Current Range: 4.2A
    • Resolution: High
    • Rated Speed: 100HZ(RPM)

    Technical Parameters:

    ParameterValue
    Load CapacityHigh
    Power ConsumptionLow
    Current Range1.2A
    Product TypeLinear Voice Coil Motor With Shaft
    RepeatabilityHigh
    Stroke Length3mm
    Voltage Range5.4V
    Rated Speed100HZ(RPM)
    Model NumberVCAB Series
    Rated Power2500N
    Product ModelPeak Force
    (N)
    Continuous Force
    at 25℃(N)
    Total Stroke
    (mm)
    Max Voltage
    (V)
    Back EMF Constant
    (V/m/s)
    Weight of the coil
    (g)
    Stator DiameterShaft end thread
    (mm)
    VCAB0005-0039-00A51.535.40.92329.5M2(Outer)
    VCAB0005-0050-00A52.23.914.53.12731.5M2.5(Outer)
    VCAB0013-0072-00A134.27.226.65.7216.226.2M3(Outer)
    VCAB0015-0062-00A156.56.226.29.7514.833M3(Outer)
    VCAB0015-0127-00A154.912.721.54.112.530.5Shaft ∮4.8
    VCAB0022-0098-00A226.69.824.75.82034.1M3(Outer)
    VCAB0022-0448-00A2211.444.814.345248M3(Inner)
    VCAB0032-0050-00A328.9529.37.14840M3(Inner)
    VCAB0033-0099-00A3389.924.35.8723.536M3(Outer)
    VCAB0033-0224-00A3313.522.426.76.86958M3(Inner)
    VCAB0035-0105-00A3515.610.511.959150M3(Inner)
    VCAB0044-0040-00A4416.3418.38.946.553M3(Inner)
    VCAB0044-0059-00A44.117.75.914.384346M3(Inner)
    VCAB0044-0075-00A4413.77.516.87.638.631.1M3(Outer)
    VCAB0044-0249-00A4411.724.944.98.8865.938.1M3(Inner)
    VCAB0070-0149-00A7027.314.926.917.77943M3(Inner)
    VCAB0087-0062-00A8721.676.234.512.745.243.1M3(Inner)
    VCAB0087-0563-00A8717.556.363.48.117772shaft ∮10
    VCAB0088-0191-00A88.523.219.129.9816250.8M3(Inner)
    VCAB0105-0164-00A10535.416.120.111.515060.4M3(Inner)
    VCAB0113-0089-00A113358.93117.512573shaft ∮8
    VCAB0262-0112-00A26211111.235.14128571shaft ∮10
    VCAB0262-0249-00A26211224.928.22678566shaft ∮8
    VCAB0294-0498-00A29456.849.811424.568593shaft ∮10
    VCAB0436-0187-00A436147.618.740.740.764880.4shaft ∮10
    VCAB0436-0250-00A4361672531.637.277578.4shaft ∮10
    VCAB0445-0300-00A44518530333592076.2shaft ∮10

    Applications:

    SUPT MOTION VCAB Series Linear Voice Coil Motor is a linear voice coil device that is used in a variety of applications. It has a high load capacity and low power consumption, and its linearity is extremely high. It has a current range of 1.2A and is certified with ISO9001. It comes with a minimum order quantity of ≥5 and price of $119. It is packaged in carton packaging and is typically delivered within general 5-7 days delivery, fast 3-5 days, bulk to be negotiated. Payment terms are T/T.SUPT MOTION has a good supply ability and can be interviewed for more details.

    Built in motion shaft and precision linear bearing. The moving shaft is made of light, high rigidity and wear-resistant,high-quality materials. It is widely used in semiconductor, precision test and detection,valve flow control field.
