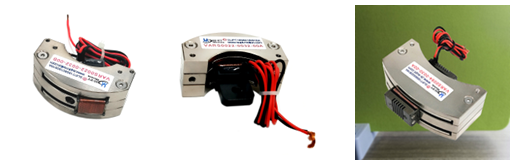

High Speed Low Noise 2W Peak Torque 0.22N.m Rotational Voice Coil Motor

Product Description:

The Rotary Actuators have taken the technology of the rectangular linear actuator and bent therm to provide a high resolution limited angle positioning system.Typical stroke angles exceed 100 degrees and torques to 50 N-m.
Rotary Voice Coil Motor (VCM) is an innovative motor that offers continuous torque of up to 0.12N-m, low noise and high reliability. Its model number is VARS0022-032-00A, and it is specifically designed with rotational technology for superior performance. It is an ideal choice for applications that require a rotational motor with superior and reliable performance. It also comes with a warranty of 3 months to 1 year, depending on the application. With Rotary Voice Coil Motor, you can be sure of high-quality performance and maximum efficiency.

Features:

• Product Name: Rotary Voice Coil Motor
• Life: ≥10000h
• Material: Aluminum Alloy
• Peak Torque: 0.22N.m
• Accuracy: 0.05mm
• Model Number: VARS0022-032-00A
• Highlights: Rotational Voice Coil, Rotary Voice Coil Motor

Technical Parameters:

Attribute	Value
Product Type	Rotary Voice Coil Motor
Model Number	VARS0022-032-00A
Voltage	15.5V
Power	2W
Speed	Variable Speed
Peak Torque	0.22N.m
Continous Torque	0.12N-m
Accuracy	0.05mm
Life	≥10000h
Warranty	3months-1 Year

Product Model	Peak torque (N-m)	Continuos torque at 25℃(N-m)	Total Stroke degrees ( mm)	Max Voltage (V)	Back EMF Constant (V/m/s)	Weight of the coil(g)	Length (mm)	Width (mm)	Height (mm)
VARS0008-026-00A	0.08	0.05	26	6.4	0.05	11.7	35	39.8	36.1
VARS0017-090-00A	0.17	0.1	90	11.1	0.1	17.8	70	41.5	39
VARS0022-032-00A	0.22	0.12	32	15.5	0.16	21.5	60	60	36
VARS0042-040-00A	0.42	0.38	40	3.5	0.12	38	82	53.6	30.3
VARS0077-020-00A	0.77	0.63	20	6.7	0.24	66	75	50	30
VARS0084-030-00A	0.84	0.6	30	6.3	0.2	50.4	75	48.9	30.6
VARS0120-020-00A	1.2	0.5	20	8.4	0.67	65	81	73.4	32
VARS0350-060-00A	3.5	1.14	60	25.8	0.52	115	115	65	54.5
VARS0706-014-00A	7.1	2.1	14	52.4	1.03	225.5	115	65	54.5
VARS4520-030-00A	45.2	19	30	71.5	4.3	1350	￠240		78

Applications:

The Rotary Actuators are typically utilized as mirror position Actuators for laser technologies,rotary valve and damping Actuators, rotary positioning systems and flight control Actuators, Rotary Actuators markets include semiconductor,automotive,industrial and aerospace industries.
SUPT MOTION is a professional manufacturer of Rotary VCM, Rotational Voice Coil, Rotary voice coil Actuator (VCM) with VARS Series from Jiangsu, China, which is certified with ISO9001-2000. The minimum order quantity is ≥1 and the price is $112 per unit. The packaging is carton packaging and the delivery time is from sample order 2-3 days,other one work days, bulk to be negotiated. Besides, the payment terms are T/T, and the supply ability is on interview. The continous torque is 0.12N-m, the power is 2W, the voltage is 15.5V and the warranty is from 3months to 1 year. The speed is Variable Speed.

Suzhou Unite Precision Machinery Technology Co., Ltd.(Supt Motion) is a high-tech enterprise specializing in the design, manufacturing, and sales of voice coil actuator, linear motors, and precision linear motion platforms. The company produces high-quality and high-performance voice coil actuator, linear motors, and precision linear motion platforms using domestic and foreign front-end technology and testing methods, which can provide precise direct drive control solutions and customized products for domestic and foreign customers.

The company has an experienced technical team in the industry with over 13 years of experience in precision linear motion design, and its products have obtained over 30 patent technology certifications. We can develop high-performance and high-quality products that meet customer requirements based on their actual needs.

The company implements advanced front-end design and process standards both domestically and internationally, has a complete and effective quality assurance system, and strictly implements the ISO 9001 quality management system for standardized production. The testing equipment is complete, and it can conduct comprehensive testing of product performance, effectively ensuring product quality. The company has multiple certifications such as iso9001, CE, and ROHS.

Our tenet: High quality is our pursuit, and customer satisfaction is our commitment.

We will continue to improve in technology Strive for perfection in the quality, We will ensure that our high quality and inexpensive products are satisfied ,Make it has stronger competitiveness.

The company has successfully served over 2000+ domestic and foreign customers, winning market reputation with export quality and Perfect service. We provide high-quality voice coil actuators, linear motors, and precision linear motion platform series products for numerous brand enterprises, widely used in intelligent equipment fields such as semiconductors, optical systems, biomedicine, vibration control, valve control, precision machining, 3C, new energy batteries, automotive electronics, packaging, printing, aerospace, image processing automation, etc.
