Low Noise 500rpm Rotating VCM 0.22N.m Peak Torque 50*50*50mm Size

Product Description:

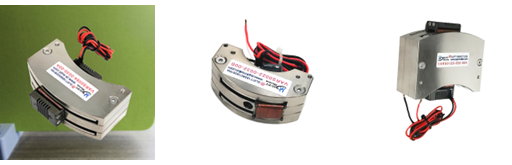

Rotary Voice Coil Motor (VCM) is a type of curved voice coil motor with high speed and peak torque. It has a rotating design, providing a peak torque of 0.22N.m. Built with superior materials, this motor has excellent durability and can last for more than 10000 hours, even when powered by 15.5V. The rotating VCM is a perfect solution for a broad range of applications that require precise, fast and reliable controlling.

The Rotary Actuators have taken the technology of the rectangular linear actuator and bent therm to provide a high resolution limited angle positioning system.Typical stroke angles exceed 100 degrees and torques to 50 N-mThe Rotary Actuators are typically utilized as mirror position Actuators for laser technologies,rotary valve and damping Actuators, rotary positioning systems and flight control Actuators, Rotary Actuators markets include semiconductor,automotive,industrial and aerospace industries.

Features:

• Product Name: Rotary Voice Coil Motor
• Size: 50*50*50mm
• Material: Aluminum Alloy
• Accuracy: 0.05mm
• Noise: Low
• Features: Rotational VCM, Rotating Voice Coil, Curved Voice Coil Motor

Technical Parameters:

Parameter	Value
Type	Rotary Voice Coil Motor
Power	7W
Voltage	15.5V
Speed	High
Size	50*50*50mm
Peak Torque	0.22N.m
Continuous Torque	0.12N-m
Accuracy	0.05mm
Life	≥10000h
Warranty	3months-1 Year

Product Model	Peak torque (N-m)	Continuos torque at 25℃(N-m)	Total Stroke degrees ( mm)	Max Voltage (V)	Back EMF Constant (V/m/s)	Weight of the coil(g)	Length (mm)	Width (mm)	Height (mm)
VARS0008-026-00A	0.08	0.05	26	6.4	0.05	11.7	35	39.8	36.1
VARS0017-090-00A	0.17	0.1	90	11.1	0.1	17.8	70	41.5	39
VARS0022-032-00A	0.22	0.12	32	15.5	0.16	21.5	60	60	36
VARS0042-040-00A	0.42	0.38	40	3.5	0.12	38	82	53.6	30.3
VARS0077-020-00A	0.77	0.63	20	6.7	0.24	66	75	50	30
VARS0084-030-00A	0.84	0.6	30	6.3	0.2	50.4	75	48.9	30.6
VARS0120-020-00A	1.2	0.5	20	8.4	0.67	65	81	73.4	32
VARS0350-060-00A	3.5	1.14	60	25.8	0.52	115	115	65	54.5
VARS0706-014-00A	7.1	2.1	14	52.4	1.03	225.5	115	65	54.5
VARS4520-030-00A	45.2	19	30	71.5	4.3	1350	￠240		78

Applications:

Rotary Voice Coil Motor from SUPT MOTION: High Accuracy, High Speed and Low Voltage

SUPT MOTION's Rotary Voice Coil Motor (VCM) model VARS0022-032-00A is made of high-quality aluminum alloy and certified by ISO9001-2000. It is a great choice for applications requiring high accuracy and speed with low voltage. The VCM has a rotation speed of 500rpm with an accuracy of 0.05mm and a voltage of 15.5V. With a minimum order quantity of 1 and a price of $112, the VCM will be packaged in a carton and delivered within 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated. Payment terms include T/T. Contact SUPT MOTION for further information about their Rotary Voice Coil Motor.

The main application of a voice coil motor:

1.Semiconductor industry:Wiring, cutting, drilling, transportation systems, welding, robotics.

2.Valve operation in the field:Type metering valves, pressure test systems, pneumatic valve chemistry injection system.

3.Micro Machine industry:Feed systems, micro drilling, precision stamping.

4.Vibration System:Shaking table, vibration platform.

5.Medical field:Micro-injection system, respiratory equipment, testing equipment.

6.Aviation Technology:Flight control system, pilot feedback system.

7.Commercial use field:Computer cooling pump miniature camera auto focus system.

8.Automation industry:Laser equipment, dispenser, test equipment, textile machinery.

Suzhou Unite Precision Machinery Technology Co., Ltd.(Supt Motion) is a high-tech enterprise specializing in the design, manufacturing, and sales of voice coil actuator, linear motors, and precision linear motion platforms. The company produces high-quality and high-performance voice coil actuator, linear motors, and precision linear motion platforms using domestic and foreign front-end technology and testing methods, which can provide precise direct drive control solutions and customized products for domestic and foreign customers.

The company has an experienced technical team in the industry with over 13 years of experience in precision linear motion design, and its products have obtained over 30 patent technology certifications. We can develop high-performance and high-quality products that meet customer requirements based on their actual needs.

The company implements advanced front-end design and process standards both domestically and internationally, has a complete and effective quality assurance system, and strictly implements the ISO 9001 quality management system for standardized production. The testing equipment is complete, and it can conduct comprehensive testing of product performance, effectively ensuring product quality. The company has multiple certifications such as iso9001, CE, and ROHS.

Our tenet: High quality is our pursuit, and customer satisfaction is our commitment.

We will continue to improve in technology Strive for perfection in the quality, We will ensure that our high quality and inexpensive products are satisfied ,Make it has stronger competitiveness.

The company has successfully served over 2000+ domestic and foreign customers, winning market reputation with export quality and Perfect service. We provide high-quality voice coil actuators, linear motors, and precision linear motion platform series products for numerous brand enterprises, widely used in intelligent equipment fields such as semiconductors, optical systems, biomedicine, vibration control, valve control, precision machining, 3C, new energy batteries, automotive electronics, packaging, printing, aerospace, image processing automation, etc.
