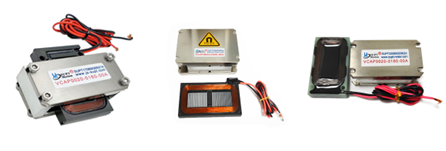

Low Noise Compact Voice Coil Linear Actuator with High Positioning Accuracy

Product Description:

Linear Voice Coil Actuator

The Linear Voice Coil Actuator is a type of voice coil actuation mechanism which utilizes a linear voice coil drive for precise and accurate control. It is a flat type voice coil motor which provides a wide range of stroke lengths from 16mm. This Linear Voice Coil Actuator System is lightweight and compact, making it suitable for a variety of applications. It features a model number of VCAP0020-0160-00A and is perfect for applications requiring precise and accurate movements.

Features:

• Product Name: Linear Voice Coil Actuator System
• Stroke: 16mm
• Positioning Accuracy: High
• Protection: IP67
• Duty Cycle: High
• Voice Coil Linear Motor Technology: Provides precise linear motion with high acceleration and velocity
• Linear Voice Coil Motor: Greatly improves the reliability and performance of the system

Technical Parameters:

Parameter	Value
Product Name	Linear Voice Coil Actuator
Stroke	16mm
Duty Cycle	High
Size	Compact
Speed	High
Noise Level	Low
Protection	IP67
Weight	Light
Lifetime	Long
Positioning Accuracy	High

Product Model	Peak Force (N)	Continuous Force at 25℃(N)	Total Stroke (mm)	Max Voltage (V)	Back EMF Constant (V/m/s)	Length (mm)	Width (mm)	Height (mm)
VCAP0020-0068-00A	20	5.5	6.8	8.2	4.4	39	50	21.5
VCAP0020-0160-00A	20	5.3	16	27.6	4.4	59	50	22.5
VCAP0030-0020-00A	30	12.3	20	24.3	10.5	80	74	25
VCAP0100-0020-00A	100	47	4	41.2	80.1	110	105	51

Applications:

Linear Voice Coil Actuator Motor, manufactured by SUPT MOTION from Jiangsu, China, is certified with ISO9001 and available at a minimum order quantity of ≥1. The model number is VCAP Series and the price is $107. It comes with Carton Packaging, and the delivery time is 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated. There are two payment terms available: T/T. The supply ability is subjected to interview. It is a flat type voice coil motor with a wide operating temperature and low noise level. The input voltage ranges from 27.6V, and it is also protected with IP67.

It is widely used in semiconductor, precision test and detection​ ,Boat,Car, Electric Bicycle, Medical Ventilators,Optical project,Laser equipment.

Suzhou Unite Precision Machinery Technology Co., Ltd.(Supt Motion) is a high-tech enterprise specializing in the design, manufacturing, and sales of voice coil actuator, linear motors, and precision linear motion platforms. The company produces high-quality and high-performance voice coil actuator, linear motors, and precision linear motion platforms using domestic and foreign front-end technology and testing methods, which can provide precise direct drive control solutions and customized products for domestic and foreign customers.

The company has an experienced technical team in the industry with over 13 years of experience in precision linear motion design, and its products have obtained over 30 patent technology certifications. We can develop high-performance and high-quality products that meet customer requirements based on their actual needs.

The company implements advanced front-end design and process standards both domestically and internationally, has a complete and effective quality assurance system, and strictly implements the ISO 9001 quality management system for standardized production. The testing equipment is complete, and it can conduct comprehensive testing of product performance, effectively ensuring product quality. The company has multiple certifications such as iso9001, CE, and ROHS.

Our tenet: High quality is our pursuit, and customer satisfaction is our commitment.

We will continue to improve in technology Strive for perfection in the quality, We will ensure that our high quality and inexpensive products are satisfied ,Make it has stronger competitiveness.

The company has successfully served over 2000+ domestic and foreign customers, winning market reputation with export quality and Perfect service. We provide high-quality voice coil actuators, linear motors, and precision linear motion platform series products for numerous brand enterprises, widely used in intelligent equipment fields such as semiconductors, optical systems, biomedicine, vibration control, valve control, precision machining, 3C, new energy batteries, automotive electronics, packaging, printing, aerospace, image processing automation, etc.
