High Positioning Accuracy Compact Linear Voice Coil Motor for Long Lifetime

Product Description:

Linear Voice Coil Actuator is an advanced voice coil linear motor actuation system designed for high-precision positioning accuracy, long lifetime, high duty cycle, and compact size. It delivers smooth and accurate performance even in tough conditions and is IP67-rated for protection against dust, dirt, and water. This voice coil linear motor actuation system provides a reliable, compact, and cost-effective solution for a wide range of applications. With its high precision, long lifetime, and robust protection, it is an ideal choice for applications with stringent requirements.

The VCAP series Planer Actuators have a lower stroke length per size than Rectangular,But they also have a lower height profile .Forces range up to 500N and strokers to 15mmThe VCAP series Planer Actuator are the ideal solution for very small stroke X-Y Axis movements and their major market is in the semiconductor and micro machine tool industries.

Features:

• Linear Voice Actuation System
• Voice Coil Actuation Mechanism
• IP67 Protection Rating
• 41V Voltage Input
• 4mm Stroke Length
• Long Lifetime
• High Force

Technical Parameters:

Parameter	Linear Voice Coil Actuator
Product Name	Linear Voice Coil Actuator
Type	Flat Type Voice Coil Motor
Model Number	VCAP Series
Stroke Length	4mm
Input Voltage	41V
Speed	High
Noise Level	Low
Duty Cycle	High
Lifetime	Long
Positioning Accuracy	High

Product Model	Peak Force (N)	Continuous Force at 25℃(N)	Total Stroke (mm)	Max Voltage (V)	Back EMF Constant (V/m/s)	Length (mm)	Width (mm)	Height (mm)
VCAP0020-0068-00A	20	5.5	6.8	8.2	4.4	39	50	21.5

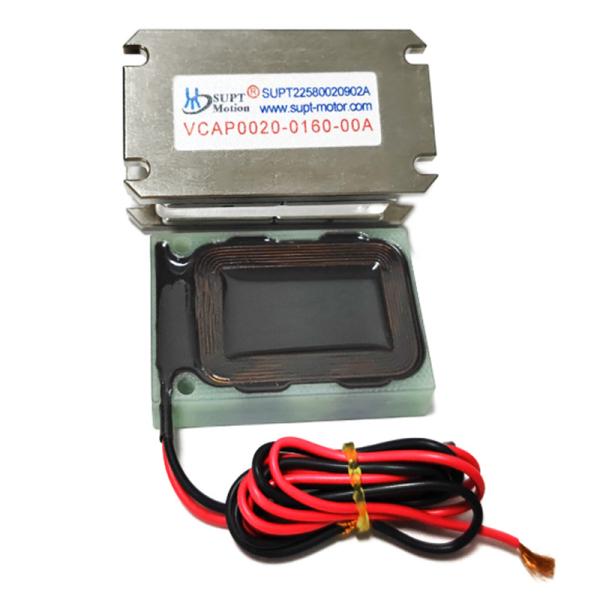

VCAP0020-0160-00A	20	5.3	16	27.6	4.4	59	50	22.5
VCAP0030-0020-00A	30	12.3	20	24.3	10.5	80	74	25
VCAP0100-0020-00A	100	47	4	41.2	80.1	110	105	51

Applications:

SUPT MOTION's VCAP Series Linear Voice Coil Actuator provides an ideal solution for linear motion applications, making it ideal for a wide range of industries. It is a high performance linear actuation system with a low profile design, offering a long life and high force output. With its high duty cycle and IP67 protection, this actuator is perfect for challenging environments. This Linear Voice Coil Actuator is designed for both low and high voltage applications. It can be used with an input voltage 41V, providing high force output and long lifetime. The motor is certified with ISO9001 standards and comes with a minimum order quantity of 1. The price is $107 and is available in carton packaging, with delivery time ranging from 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated. Payment Terms include T/T , and the Supply Ability is interviewed.

It is widely used in semiconductor, precision test and detection​ ,Boat, Car, Electric Bicycle, UAV,3D Printing,Microscope,Robot,Medical Ventilators,Optical project.

Suzhou Unite Precision Machinery Technology Co., Ltd.(Supt Motion) is a high-tech enterprise specializing in the design, manufacturing, and sales of voice coil actuator, linear motors, and precision linear motion platforms. The company produces high-quality and high-performance voice coil actuator, linear motors, and precision linear motion platforms using domestic and foreign front-end technology and testing methods, which can provide precise direct drive control solutions and customized products for domestic and foreign customers.

The company has an experienced technical team in the industry with over 13 years of experience in precision linear motion design, and its products have obtained over 30 patent technology certifications. We can develop high-performance and high-quality products that meet customer requirements based on their actual needs.

The company implements advanced front-end design and process standards both domestically and internationally, has a complete and effective quality assurance system, and strictly implements the ISO 9001 quality management system for standardized production. The testing equipment is complete, and it can conduct comprehensive testing of product performance, effectively ensuring product quality. The company has multiple certifications such as iso9001, CE, and ROHS.

Our tenet: High quality is our pursuit, and customer satisfaction is our commitment.

We will continue to improve in technology Strive for perfection in the quality, We will ensure that our high quality and inexpensive products are satisfied ,Make it has stronger competitiveness.

The company has successfully served over 2000+ domestic and foreign customers, winning market reputation with export quality and Perfect service. We provide high-quality voice coil actuators, linear motors, and precision linear motion platform series products for numerous brand enterprises, widely used in intelligent equipment fields such as semiconductors, optical systems, biomedicine, vibration control, valve control, precision machining, 3C, new energy batteries, automotive electronics, packaging, printing, aerospace, image processing automation, etc.
