Compact Linear Voice Coil Actuator High Speed Vcm Voice Coil Motor

Suzhou Unite Precision Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Compact Linear Voice Coil Actuator High Speed Vcm Voice Coil Motor from wholesalers

    Buy cheap Compact Linear Voice Coil Actuator High Speed Vcm Voice Coil Motor from wholesalers
    • Buy cheap Compact Linear Voice Coil Actuator High Speed Vcm Voice Coil Motor from wholesalers
    • Buy cheap Compact Linear Voice Coil Actuator High Speed Vcm Voice Coil Motor from wholesalers
    • Buy cheap Compact Linear Voice Coil Actuator High Speed Vcm Voice Coil Motor from wholesalers

    Compact Linear Voice Coil Actuator High Speed Vcm Voice Coil Motor

    Ask Lasest Price
    Brand Name : SUPT MOTION
    Model Number : VCAP Series
    Certification : ISO9001
    Price : $107
    Delivery Time : 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated
    Payment Terms : T/T
    Supply Ability : Interview
    • Product Details
    • Company Profile

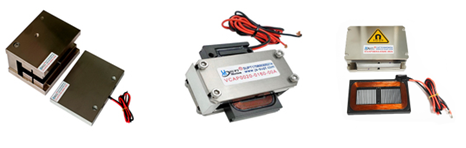

    Compact Linear Voice Coil Actuator High Speed Vcm Voice Coil Motor

    Linear Voice Coil Actuator Motor High Positioning Accuracy IP67 Protection

    Product Description:

    The VCAP series Planer Actuator are the ideal solution for very small stroke X-Y Axis movements and their major market is in the semiconductor and micro machine tool industries.
    Linear Voice Coil Drive is a high-performance, compact voice coil linear actuator system. It provides high-force, low-noise linear motion and is designed to operate in wide temperature ranges. With its IP67 protection rating, it is ideal for applications where dust and water resistance is required. Its compact size and high performance make it the perfect solution for a wide range of applications. From medical and industrial to aerospace and automotive, Linear Voice Coil Drive is the perfect choice for linear motion control applications.

    Features:

    • Product Name: Linear Voice Coil Actuator
    • Input Voltage: 41.2V
    • Weight: Light
    • Size: Compact
    • Noise Level: Low
    • Voice Coil Linear Motor Technology
    • Linear Voice Coil Actuation
    • High-Performance Voice Coil Linear Motor
    • Linear Actuator for Precise Motion Control

    Technical Parameters:

    ParameterValue
    Product NameLinear Voice Coil Actuator
    SpeedHigh
    ProtectionIP67
    TypeFlat Type Voice Coil Motor
    Duty CycleHigh
    WeightLight
    Operating TemperatureWide
    Stroke4mm
    LifetimeLong
    ForceHigh
    Linear Voice Coil MotorYes
    Linear Voice Coil DriveYes
    Linear Voice Coil Drive SystemYes
    Product ModelPeak Force
    (N)
    Continuous Force
    at 25℃(N)
    Total Stroke
    (mm)
    Max Voltage
    (V)
    Back EMF Constant
    (V/m/s)
    Length
    (mm)
    Width
    (mm)
    Height
    (mm)
    VCAP0020-0068-00A205.56.88.24.4395021.5
    VCAP0020-0160-00A205.31627.64.4595022.5
    VCAP0030-00-00A3012.32024.310.5807425
    VCAP0100-0020-00A10047441.280.111010551

    Applications:

    It is widely used in semiconductor, precision test and detection​ ,Boat, Car, Electric Bicycle, UAV,3D Printing,Microscope,Robot,Medical Ventilators,Optical project.
    The Linear Voice Coil Actuator from SUPT MOTION, model VCAP Series, is an ideal solution for applications requiring linear voice actuation systems. This product is certificated by ISO9001 and the minimum order quantity is ≥1. It comes with an input voltage of 41.2V, a compact size and a flat type voice coil motor, which is able to produce high force.
    The price for the Linear Voice Coil Actuator is $107 and the delivery time is 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated. We accept both T/T as payment terms. The package will be carton packaging and other materials according to customer's requirements. We have sufficient supply ability and can provide an interview for further details.
