IP67 Rated VCAP Series Linear Voice Coil Actuator System Wide Operating Temperature

Product Description:

The Linear Voice Coil Actuator is a voice coil actuation mechanism that provides high performance, low noise and high force to meet the needs of multiple applications. Its high speed and high force capabilities make it ideal for applications requiring precision control and movement. The VCAP Series model is designed to provide protection up to IP67 standards, and its low noise level makes it suitable for use in noise-sensitive environments. It is an ideal solution for applications requiring precise motion control, high speeds, and high forces.

The VCAP series Planer Actuator are the ideal solution for very small stroke X-Y Axis movements and their major market is in the semiconductor and micro machine tool industries.

Features:

• Product Name: Linear Voice Coil Actuator
• Protection: IP67
• Model Number: VCAP Series
• Positioning Accuracy: High
• Stroke Length: 16mm
• Input Voltage: 27.6V

Technical Parameters:

Parameter	Description
Noise Level	Low
Size	Compact
Weight	Light
Type	Flat Type Voice Coil Motor
Stroke Length	16mm
Product Name	Linear Voice Coil Actuator
Input Voltage	27.6V
Protection	IP67
Operating Temperature	Wide
Duty Cycle	High
Voice Coil Actuation Mechanism	Yes
Voice Coil Linear Actuator	Yes
Linear Voice Coil Drive	Yes

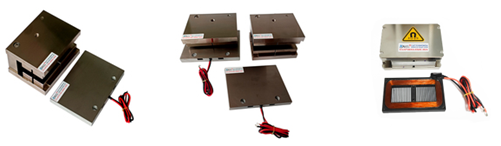

Product Model	Peak Force (N)	Continuous Force at 25℃(N)	Total Stroke (mm)	Max Voltage (V)	Back EMF Constant (V/m/s)	Length (mm)	Width (mm)	Height (mm)
VCAP0020-0068-00A	20	5.5	6.8	8.2	4.4	39	50	21.5
VCAP0020-0160-00A	20	5.3	16	27.6	4.4	59	50	22.5
VCAP0030-0200-00A	30	12.3	20	24.3	10.5	80	74	25
VCAP0100-0020-00A	100	47	4	41.2	80.1	110	105	51

Applications:

Linear Voice Coil Actuator

SUPT MOTION offers a wide range of Voice Coil Linear Actuator (Model Number: VCAP Series) featuring high force, long lifetime and light weight. It is a reliable solution for linear motion control in linear automation applications. Certified with ISO9001, it is available with minimum order quantity of 1 and price of $107. It is delivered in carton packaging within 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated and payment could be made via T/T . Its supply ability is open for interview.

Voice Coil Linear Actuator is widely used in different industries including aerospace, medical, pharmaceutical, automotive, packaging, military, robotics, industrial automation and so on. It has become an important part of linear automation applications, providing a reliable and accurate solution for linear motion control.

The main application of a voice coil motor:

1.Semiconductor industry:Wiring, cutting, drilling, transportation systems, welding, robotics.

2.Valve operation in the field:Type metering valves, pressure test systems, pneumatic valve chemistry injection system.

3.Micro Machine industry:Feed systems, micro drilling, precision stamping.

4.Vibration System:Shaking table, vibration platform.

5.Medical field:Micro-injection system, respiratory equipment, testing equipment.

6.Aviation Technology:Flight control system, pilot feedback system.

7.Commercial use field:Computer cooling pump miniature camera auto focus system.

8.Automation industry:Laser equipment, dispenser, test equipment, textile machinery.

Suzhou Unite Precision Machinery Technology Co., Ltd.(Supt Motion) is a high-tech enterprise specializing in the design, manufacturing, and sales of voice coil actuator, linear motors, and precision linear motion platforms. The company produces high-quality and high-performance voice coil actuator, linear motors, and precision linear motion platforms using domestic and foreign front-end technology and testing methods, which can provide precise direct drive control solutions and customized products for domestic and foreign customers.

The company has an experienced technical team in the industry with over 13 years of experience in precision linear motion design, and its products have obtained over 30 patent technology certifications. We can develop high-performance and high-quality products that meet customer requirements based on their actual needs.

The company implements advanced front-end design and process standards both domestically and internationally, has a complete and effective quality assurance system, and strictly implements the ISO 9001 quality management system for standardized production. The testing equipment is complete, and it can conduct comprehensive testing of product performance, effectively ensuring product quality. The company has multiple certifications such as iso9001, CE, and ROHS.

Our tenet: High quality is our pursuit, and customer satisfaction is our commitment.

We will continue to improve in technology Strive for perfection in the quality, We will ensure that our high quality and inexpensive products are satisfied ,Make it has stronger competitiveness.

The company has successfully served over 2000+ domestic and foreign customers, winning market reputation with export quality and Perfect service. We provide high-quality voice coil actuators, linear motors, and precision linear motion platform series products for numerous brand enterprises, widely used in intelligent equipment fields such as semiconductors, optical systems, biomedicine, vibration control, valve control, precision machining, 3C, new energy batteries, automotive electronics, packaging, printing, aerospace, image processing automation, etc.
