Product Description:
The output voice coil motor is a special type of voice coil motor,
which is designed differently from traditional built-in voice coil
motors. Its voice coil (coil) is located outside the motor,
surrounding the axis of the motor, and has some unique
characteristics and advantages compared to traditional built-in
voice coil motors. The working principle of the axial voice coil
motor is similar to other voice coil motors, using Lorentz force to
generate mechanical motion. When the current passes through the
voice coil located outside the motor, it is subjected to a force in
the magnetic field inside the motor, causing the external voice
coil to start moving. This motion can be used to drive mechanical
loads or vibrating membranes to meet various application
requirements.
The axial voice coil motor is a flexible, compact, and
high-performance motor type suitable for various applications that
require precise control and compact design. The design of its
external voice coil plays an important role in automation,
robotics, aerospace and other fields, promoting the development and
innovation of related fields.
Let's talk about the application of axial motors in robotics
technology. In automation and robotics, axial voice coil motors can
be used to drive robot joints, achieving precise position and speed
control; Firstly, the axial voice coil motor is commonly used in
the joint drive system of robots to control joint motion. Due to
its high precision, fast response, and high efficiency, the output
voice coil motor is very suitable for achieving precise control and
action execution of robot joints. This precise control can enable
robots to complete complex action tasks such as assembly, picking,
and placement.
Secondly, the output axis voice coil motor can also be used to
drive the end effectors of robots, such as grippers, fixtures,
nozzles, etc. By combining the output axis voice coil motor with
corresponding mechanical devices, precise position control and
force control of the robot's end effector can be achieved, thereby
achieving more flexible and precise operations.
Moreover, for wheeled robots, the output voice coil motor is
commonly used to drive their wheels or track systems. This type of
motor can provide high torque and power density, allowing wheeled
robots to move quickly, turn flexibly, and achieve stable motion in
different terrains.
It also has the functions of joint sensor driving and dynamic
balance control. The output axis voice coil motor is usually used
in conjunction with sensors to achieve closed-loop control of robot
joints. Through feedback mechanisms, real-time monitoring and
adjustment of joint position, velocity, and force can be achieved,
thereby improving the motion accuracy and stability of robots. The
high response speed and precise control ability of the output axis
voice coil motor make it play an important role in the dynamic
balance control of robots. For example, in bipedal robots or
aircraft, the axial voice coil motor can be used to adjust the
robot's posture and balance in real-time to maintain its stable
motion.
Therefore, the use of axial voice coil motors in robot technology
involves multiple aspects such as motion control, force control,
and attitude adjustment, which can improve the performance,
flexibility, and autonomy of robots and promote the continuous
development and application of robot technology.
Features:
- Product Name: Output Shaft Voice Coil Motor
- Model Number: VCAB
- Product Type: Linear Voice Coil Motor
- Load Capacity: High
- Force Output: High
- Power Consumption: Low
Technical Parameters:
| Product Model | Peak Force
(N) | Continuous Force
at 25℃(N) | Total Stroke
(mm) | Max Voltage
(V) | Back EMF Constant
(V/m/s) | Weight of the coil
(g) | Stator Diameter | Shaft end thread
(mm) |
| VCAB0005-0039-00A | 5 | 1.5 | 3 | 5.4 | 0.9 | 23 | 29.5 | M2(Outer) |

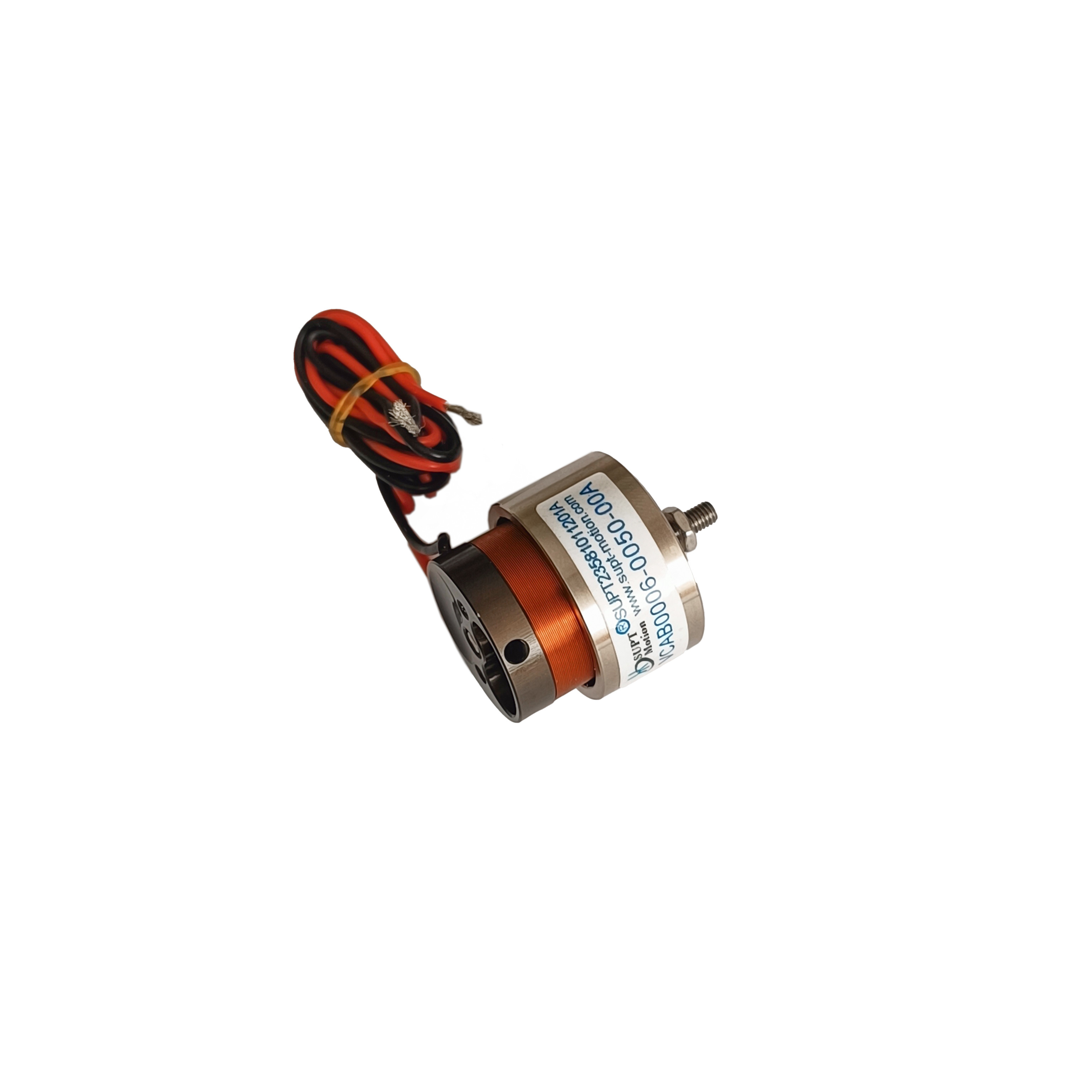

| VCAB0005-0050-00A | 5 | 2.2 | 3.9 | 14.5 | 3.1 | 27 | 31.5 | M2.5(Outer) |
| VCAB0013-0072-00A | 13 | 4.2 | 7.2 | 26.6 | 5.72 | 16.2 | 26.2 | M3(Outer) |
| VCAB0015-0062-00A | 15 | 6.5 | 6.2 | 26.2 | 9.75 | 14.8 | 33 | M3(Outer) |
| VCAB0015-0127-00A | 15 | 4.9 | 12.7 | 21.5 | 4.1 | 12.5 | 30.5 | Shaft ∮4.8 |
| VCAB0022-0098-00A | 22 | 6.6 | 9.8 | 24.7 | 5.8 | 20 | 34.1 | M3(Outer) |
| VCAB0022-0448-00A | 22 | 11.4 | 44.8 | 14.3 | 4 | 52 | 48 | M3(Inner) |
| VCAB0032-0050-00A | 32 | 8.9 | 5 | 29.3 | 7.1 | 48 | 40 | M3(Inner) |
| VCAB0033-0099-00A | 33 | 8 | 9.9 | 24.3 | 5.87 | 23.5 | 36 | M3(Outer) |
| VCAB0033-0224-00A | 33 | 13.5 | 22.4 | 26.7 | 6.8 | 69 | 58 | M3(Inner) |
| VCAB0035-0105-00A | 35 | 15.6 | 10.5 | 11.9 | 5 | 91 | 50 | M3(Inner) |
| VCAB0044-0040-00A | 44 | 16.3 | 4 | 18.3 | 8.9 | 46.5 | 53 | M3(Inner) |
| VCAB0044-0059-00A | 44.1 | 17.7 | 5.9 | 14.3 | 8 | 43 | 46 | M3(Inner) |
| VCAB0044-0075-00A | 44 | 13.7 | 7.5 | 16.8 | 7.6 | 38.6 | 31.1 | M3(Outer) |
| VCAB0044-0249-00A | 44 | 11.7 | 24.9 | 44.9 | 8.88 | 65.9 | 38.1 | M3(Inner) |
| VCAB0070-0149-00A | 70 | 27.3 | 14.9 | 26.9 | 17.7 | 79 | 43 | M3(Inner) |
| VCAB0087-0062-00A | 87 | 21.67 | 6.2 | 34.5 | 12.7 | 45.2 | 43.1 | M3(Inner) |
| VCAB0087-0563-00A | 87 | 17.5 | 56.3 | 63.4 | 8.1 | 177 | 72 | shaft ∮10 |
| VCAB0088-0191-00A | 88.5 | 23.2 | 19.1 | 29.9 | 8 | 162 | 50.8 | M3(Inner) |
| VCAB0105-0164-00A | 105 | 35.4 | 16.1 | 20.1 | 11.5 | 150 | 60.4 | M3(Inner) |
| VCAB0113-0089-00A | 113 | 35 | 8.9 | 31 | 17.5 | 125 | 73 | shaft ∮8 |
| VCAB0262-0112-00A | 262 | 111 | 11.2 | 35.1 | 41 | 285 | 71 | shaft ∮10 |
| VCAB0262-0249-00A | 262 | 112 | 24.9 | 28.2 | 26 | 785 | 66 | shaft ∮8 |
| VCAB0294-0498-00A | 294 | 56.8 | 49.8 | 114 | 24.5 | 685 | 93 | shaft ∮10 |
| VCAB0436-0187-00A | 436 | 147.6 | 18.7 | 40.7 | 40.7 | 648 | 80.4 | shaft ∮10 |
| VCAB0436-0250-00A | 436 | 167 | 25 | 31.6 | 37.2 | 775 | 78.4 | shaft ∮10 |
| VCAB0445-0300-00A | 445 | 185 | 30 | 33 | 35 | 920 | 76.2 | shaft ∮10 |
Applications:
The application of axial voice coil motors is very extensive, and
they are widely used globally, mainly concentrated in some
developed countries and regions, especially in countries with high
industrialization and leading technological levels. Axial voice
coil motors are widely used in fields such as automation, robotics,
aerospace, industrial automation, automotive manufacturing, medical
equipment, and electronic products.
Customization:
Customized Linear Voice Coil Motor
Brand Name: SUPT MOTION
Model Number: VCAB Series
Place of Origin: Jiangsu, China
Certification: ISO9001
Minimum Order Quantity: ≥1
Price: $126
Packaging Details: Carton Packaging etc
Delivery Time: 1-5 products 5-7 days shipment, samples 3-5 days,
bulk to be negotiated
Payment Terms: T/T
Supply Ability: Interview
Key Features of Linear Voice Coil Motor
Power Consumption: Low
Product Type: Output Shaft Voice Coil Motor
Resolution: High
Linearity: High
Performance:High Performance
Support and Services:
Technical Support and Service for Output Shaft Voice Coil Motor
We offer comprehensive technical support and service to ensure your
Output Shaft Voice Coil Motor is running smoothly. Our support team
is made up of professional engineers and technicians with years of
experience in the field.
We offer phone and email support for any technical inquiries you
may have. We also offer comprehensive maintenance and repair
services, ensuring that your Output Shaft Voice Coil Motor is
always running optimally.
For more information about our technical support and service,
please contact us at your convenience. We look forward to helping
you get the most out of your Linear Voice Coil Motor.
We can provide installation assistance, maintenance and
troubleshooting services, as well as regular preventive maintenance
and upgrades.
If you have a problem or need assistance with your Linear Voice
Coil Motor, please contact us and we will be happy to help.
Packing and Shipping:
- The linear voice coil motor will be packaged in a standard box that
is made of high-quality cardboard.
- The box will be labeled with the product name and other relevant
information such as the weight and size.
- The linear voice coil motor will be shipped within 2-3 business
days of the order being placed.
- The shipping method will vary depending on the destination. We
offer both ground and express shipping options.
- All orders will be shipped with a tracking number to ensure safe
and timely delivery.
FAQ:
- Q: What is the Brand Name?
- A: The Brand Name is SUPT MOTION.
- Q: What is the Model Number?
- A: The Model Number is VCAB Series.
- Q: Where is the Place of Origin?
- A: The Place of Origin is Jiangsu, China.
- Q: What is the minimum order quantity for the Output Shaft Voice Coil Motor?
A: The minimum order quantity for the Linear Voice Coil Motor is
≥1. - Q: How much is the Output Shaft Voice Coil Motor?
- A: Different models of motors, different quantities, different
prices.
