product description:
Adopting SUPT linear motor, equipped with high-precision optical
encoder, magnetic encoder and high-precision guideway, providing
customers with ideal linear module solutions. Compact modular
design, high speed, speed operation, smooth movement, good
stability, high precision, long service life, maintenance-free.
Effective stroke 150mm, Positioning accuracy: +2um Repeatability:
+0.5um, Straightness: +3um Maximum speed: 2m/s, Maximum
acceleration: 2g Configuration of the appropriate encoder and
guideway, positional accuracy of up to 0.1-5um.
With high dynamic response, high accuracy, high repeatability, zero
mechanical transmission error and thermally stable structure, the
single-axis linear motor module has become the core drive
technology of machine vision system, which can realize sub-micron
positioning and high-speed synchronous detection.
Single-axis linear motor module can be used in camera scanning and
positioning to move the camera accurately so that it scans or
photographs the object under test, thus improving the inspection
efficiency.
In automated production lines, single-axis linear motor modules are
used to convey workpieces to be inspected, enabling precise
positioning and ensuring accurate shooting and inspection.
In optical inspection systems it is used to drive optical lenses or
laser sensors for precise adjustment, ensuring that the inspection
system can measure the target area with high accuracy.
In robot systems, linear modules are used in conjunction with
vision systems to perform automatic deflection correction, guide
manipulators to accurately grasp objects, and improve automation.
features:
Linear motor module is equipped with high-precision optical
encoder, magnetic encoder and high-precision guideway.
High speed, high acceleration operation, smooth motion, good
stability and high precision.
Configuration of suitable encoder and guideway, position accuracy
up to 0.1-5um.
Positioning accuracy:±2um, repeatability:±0.5um, straightness:±3um.
The platform structure can be processed and customized according to
different technical requirements of customers.

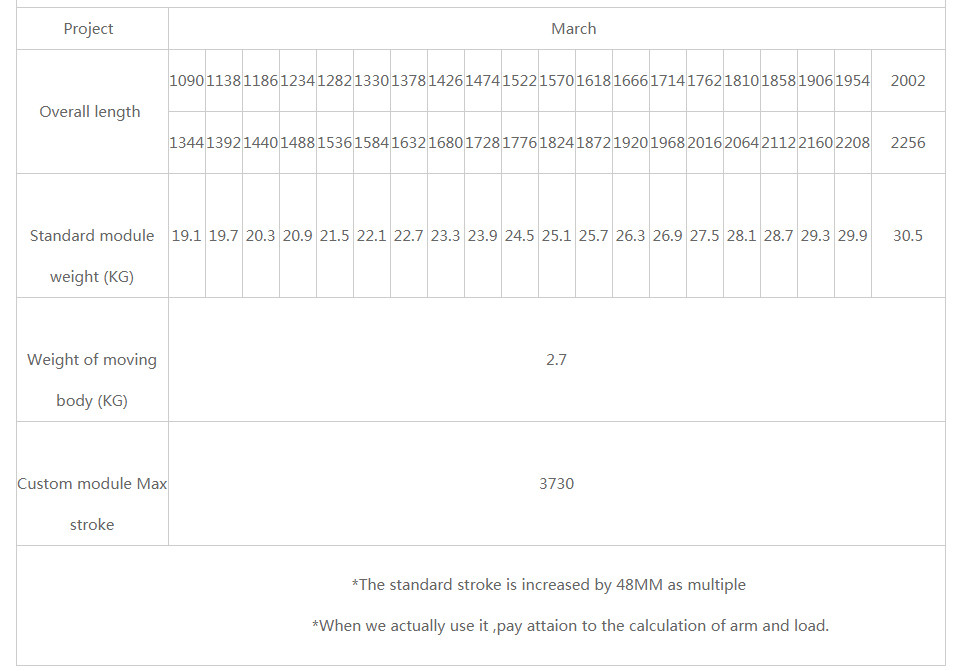

Product parameters:
| Modules | T- | LC | 80 | -100 | A | 1 | 30 |
| | LC: The plate has an iron core motor | Peak thrust | Stroke: mm | A: Raster | 01:0.1um | Motor linelength: |
| LU: U-type coreless motor | | | B: Maeicgid | 05:0.5 um | 30: 3m |
| | | | | 10: lum | |
| Modules | T- | LC | 80 | -100 | A | 1 | 30 |
| | LC: The plate has an iron core motor | Peak thrust | Stroke: mm | A: Raster | 01:0.1um | Motor linelength: |
| | LU: U-type coreless motor | | | B: Maeicgid | 05:0.5 um | 30: 3m |
| | | | | | 10: lum | |
| Linear motor performance parameters |
| A Series--MLCA(Dynamic) MLFA(Stator) |
| Model/Par | MLCA-0020-075-00 | MLCA-0040-135-00 | MLCA-0080-255-00 |
| Peak force(Fp) | N | 60 | 120 | 240 |
| Peak current(lp) | Amps | 4.8 | 4.2 | 4.2 |
| Continuous force(Fc) | N | 20 | 40 | 80 |
| Continuous current(lc) | Amps | 1.6 | 1.4 | 1.4 |
| Actuator constants(DC motor conversion/3p)(Ka) | N/W | 5.65 | 7.9 | 11.2 |
| Constant Thrust(L-L)(Kf) | N/Amps | 15.3 | 30.4 | 60.3 |
| Back EMF constant(L-L)(Kb) | V/m/sec | 8.8 | 17.6 | 34.8 |
| Electrical constant(Te) | ms | 0.3 | 0.3 | 0.3 |
| Resistance(L-L)(R) | @25℃Ω | 4.8 | 9.4 | 19.2 |
| Inductance(L-L)(l) | mh | 1.51 | 3 | 6 |
| Heat transfer coefficient(Rth) | ℃/W | *3.9 | *1.9 | **1.3 |
| Coil maximum temperature(Tmax) | ℃ | 120 | 120 | 120 |
| Magnet Pole pitch(2T) | mm | 30 | 30 | 30 |
| Mover weight | Kg | 0.24 | 0.42 | 0.82 |
Product Application:
The main applications of single-axis linear motors:
1. Semiconductor manufacturing equipment, including wafer
fabrication and chip packaging equipment.
2. Flat Panel Display (FPD) industry, precision test equipment/hard
disk manufacturing/connector manufacturing/printing plate
manufacturing equipment, etc.
3. Life sciences, medical equipment, machine vision inspection
equipment, and various equipment occurrences.
4. Electronic components SMT placement, PCB test equipment, laser
cutting, soldering and testing.
5.Logistics equipment devices.
