Product Description:

Voice coil motors (VCM) are widely used in optical focusing automation equipment due to their fast response speed, high control accuracy and simple structure.
The high control accuracy of voice coil motors can realize nanometer-level position control, which is very suitable for the demand of precision focusing of optical lenses. In the automatic focusing (AF) system, the VCM drives the lens group to move back and forth along the optical axis, realizing fast and precise focus adjustment. For example, in microscope autofocus, voice coil motor is used for precision displacement control of microscope objective lens, which supports rapid switching of the observation field and maintains clear imaging, and improves the observation efficiency and accuracy of tiny objects (e.g., biological cells, chip structures).
The VCM operates with extremely low vibration and noise, making it suitable for demanding image capture environments such as microscopic image processing, biometrics or industrial vision systems. In addition, the VCM consumes far less power than conventional motors, making it suitable for long runs of optical equipment.
In laser cutting and engraving equipment, the voice coil motor drives the Z-axis optical component to dynamically adjust the laser focus position to ensure cutting accuracy and consistency on the surface of materials of different thicknesses.
Secondly, voice coil motor is a non-contact drive structure, compared with traditional motors, its movement process has no gear meshing, no backlash, and extremely short response time, which can realize millisecond focusing response and improve image capturing efficiency.
The small size of voice coil motors makes them particularly suitable for installation in miniature or portable devices with stringent space requirements, such as smartphone cameras, automated inspection instruments, and small industrial cameras.
Used in conjunction with optical sensors or displacement encoders, voice coil motors enable closed-loop feedback control so that the center point of an optical device can be stabilized in any situation.

Features:

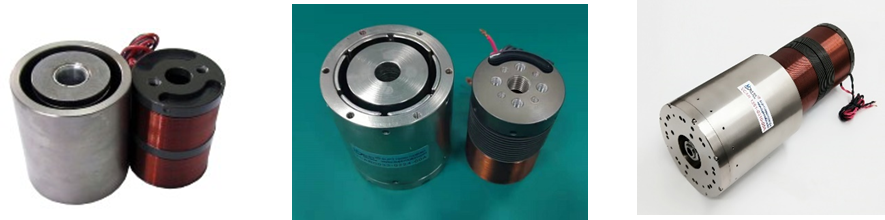

Cylindrical VCM Voice Coil Motor High response, high acceleration, low mass coil. No cogging effect, zero hysteresis. Simple structure, light weight, high frequency response, smooth running.
Stroke: 1mm-60mm.
Thrust: 0.5N-3000N.

Product Parameters:

Applications:

Main applications of voice coil motors:
1. Semiconductor industry: wiring, cutting, drilling, transportation systems, welding, robotics.
2. Field valve operation: type metering valves, pressure testing systems, pneumatic valves for chemical injection systems .
3. Micromechanical industry: feeding systems, micro drilling, precision stamping.

4. Vibration systems: vibration tables, vibration platforms.
5. Medical field: micro-injection systems, respiratory equipment, testing equipment.
6. Aviation technology: flight control systems, pilot feedback systems.
7. Commercial applications: computer cooling pumps, micro-camera auto-focusing systems.
8. Automation industry: laser equipment, dispensers, test equipment, textile machinery.

Suzhou Unite Precision Machinery Technology Co., Ltd.(Supt Motion) is a high-tech enterprise specializing in the design, manufacturing, and sales of voice coil actuator, linear motors, and precision linear motion platforms. The company produces high-quality and high-performance voice coil actuator, linear motors, and precision linear motion platforms using domestic and foreign front-end technology and testing methods, which can provide precise direct drive control solutions and customized products for domestic and foreign customers.

The company has an experienced technical team in the industry with over 13 years of experience in precision linear motion design, and its products have obtained over 30 patent technology certifications. We can develop high-performance and high-quality products that meet customer requirements based on their actual needs.

The company implements advanced front-end design and process standards both domestically and internationally, has a complete and effective quality assurance system, and strictly implements the ISO 9001 quality management system for standardized production. The testing equipment is complete, and it can conduct comprehensive testing of product performance, effectively ensuring product quality. The company has multiple certifications such as iso9001, CE, and ROHS.

Our tenet: High quality is our pursuit, and customer satisfaction is our commitment.

We will continue to improve in technology Strive for perfection in the quality, We will ensure that our high quality and inexpensive products are satisfied ,Make it has stronger competitiveness.

The company has successfully served over 2000+ domestic and foreign customers, winning market reputation with export quality and Perfect service. We provide high-quality voice coil actuators, linear motors, and precision linear motion platform series products for numerous brand enterprises, widely used in intelligent equipment fields such as semiconductors, optical systems, biomedicine, vibration control, valve control, precision machining, 3C, new energy batteries, automotive electronics, packaging, printing, aerospace, image processing automation, etc.
