Product Description:
The Rotary Actuators have taken the technology of the rectangular
linear actuator and bent therm to provide a high resolution limited
angle positioning system.Typical stroke angles exceed 100 degrees
and torques to 50 N-mThe Rotary Actuators are typically utilized as
mirror position Actuators for laser technologies,rotary valve and
damping Actuators, rotary positioning systems and flight control
Actuators, Rotary Actuators markets include
semiconductor,automotive,industrial and aerospace industries.
With a continuous torque of 0.6N-m and a peak torque of 0.84N-m,
our Rotational Voice Coil provides exceptional rotational force to
meet your application needs.
Semiconductor Manufacturing:
Application: In semiconductor production, voice coil motors are
employed for wafer positioning and inspection tools, contributing
to precise semiconductor fabrication.
Installation: Install the motor within the semiconductor equipment,
ensuring its alignment with the wafer handling mechanisms.
Integrate it into the system's control software for coordinated
movement.
Features:
- Product Name: Rotary Voice Coil Motor
- Model Number: VARS0084-030-00A
- Continous Torque: 0.6N-m
- Voltage: 6.3V
- Life: ≥100 million cycles
- Warranty: 3months-1 Year
The Rotary Voice Coil Motor, also known as Rotating VCM or
Rotational VCM, features a model number of VARS0084-030-00A. It
provides a continuous torque of 0.6N-m and operates at a voltage of
6.3V. With a long life of ≥10000h, it comes with a warranty of 3
months to 1 year.
Technical Parameters:
| Name | Rotary Voice Coil Motor |
| Model Number | VARS0084-030-00A |
| Type | Rotary Motor |
| Size | 75*48.9*30.6mm |
| Material | Aluminum Alloy |
| Accuracy | 0.05mm |
| Peak Torque | 0.84N.m |
| Continuous Torque | 0.6N-m |
| Noise | Low |
| Life | ≥100 million cycles |
| Product Model |
Peak torque
(N-m) | Continuos torque
at 25℃(N-m) | Total Stroke
degrees
( mm) | Max Voltage
(V) | Back EMF Constant
(V/m/s) | Weight of the coil(g) | Length
(mm) | Width
(mm) | Height
(mm) |
| VARS0008-026-00A | 0.08 | 0.05 | 26 | 6.4 | 0.05 | 11.7 | 35 | 39.8 | 36.1 |
| VARS0017-090-00A | 0.17 | 0.1 | 90 | 11.1 | 0.1 | 17.8 | 70 | 41.5 | 39 |
| VARS0022-032-00A | 0.22 | 0.12 | 32 | 15.5 | 0.16 | 21.5 | 60 | 60 | 36 |
| VARS0042-040-00A | 0.42 | 0.38 | 40 | 3.5 | 0.12 | 38 | 82 | 53.6 | 30.3 |

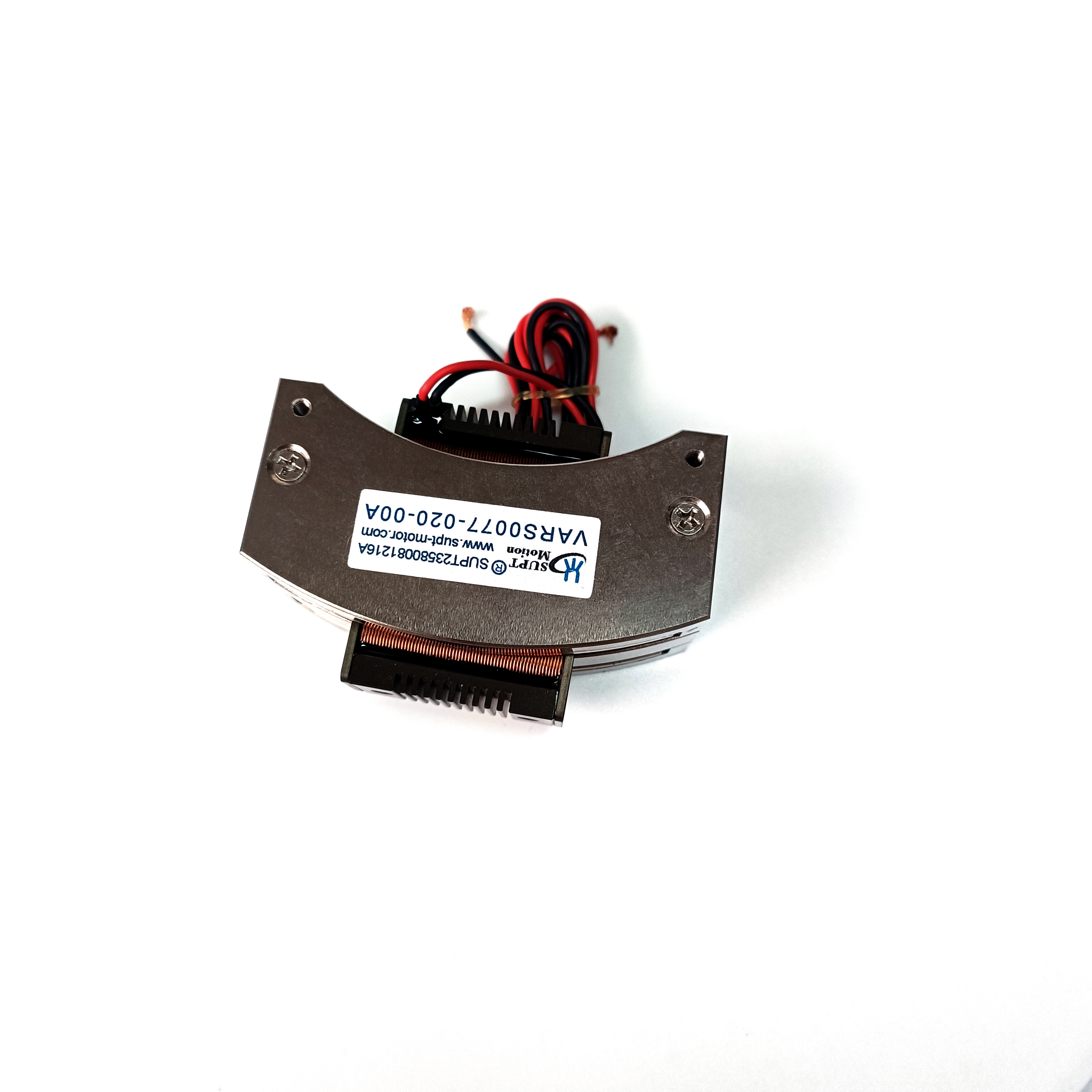

| VARS0077-020-00A | 0.77 | 0.63 | 20 | 6.7 | 0.24 | 66 | 75 | 50 | 30 |
| VARS0084-030-00A | 0.84 | 0.6 | 30 | 6.3 | 0.2 | 50.4 | 75 | 48.9 | 30.6 |
| VARS0120-020-00A | 1.2 | 0.5 | 20 | 8.4 | 0.67 | 65 | 81 | 73.4 | 32 |
| VARS0350-060-00A | 3.5 | 1.14 | 60 | 25.8 | 0.52 | 115 | 115 | 65 | 54.5 |
| VARS0706-014-00A | 7.1 | 2.1 | 14 | 52.4 | 1.03 | 225.5 | 115 | 65 | 54.5 |
| VARS4520-030-00A | 45.2 | 19 | 30 | 71.5 | 4.3 | 1350 | ￠240 | | 78 |
Applications:
| The main application of a voice coil motor: |
| 1.Semiconductor industry:Wiring, cutting, drilling, transportation
systems, welding, robotics. |
| 2.Valve operation in the field:Type metering valves, pressure test
systems, pneumatic valve chemistry injection system. |
| 3.Micro Machine industry:Feed systems, micro drilling, precision
stamping. |
| 4.Vibration System:Shaking table, vibration platform. |
| 5.Medical field:Micro-injection system, respiratory equipment,
testing equipment. |
| 6.Aviation Technology:Flight control system, pilot feedback system. |
| 7.Commercial use field:Computer cooling pump miniature camera auto focus system. |
| 8.Automation industry:Laser equipment, dispenser, test equipment,
textile machinery. |
Customization:
SUPT MOTION's VARS Series offers a range of Rotational VCM options
that can be tailored to meet your specific needs. Our products are
manufactured in Jiangsu, China and come with ISO9001-2000
certification, ensuring the highest standards of quality and
reliability.
Our Rotary Voice Coil Motors are highly accurate, with a precision
of 0.05mm, and have a long lifespan of at least 100 million cycles. They operate at a voltage of 6.3V and offer a peak torque of
0.84N.m and a continuous torque of 0.6N-m.
Support and Services:
The Rotary Voice Coil Motor (RVCM) offers high-speed,
high-precision rotary motion control with no contact between the
moving parts. Our technical support team is available to assist
with any questions or issues related to the RVCM, including
installation, operation, and troubleshooting.
In addition, we offer a range of services to support our RVCM
customers, including:
- Customization of RVCMs to meet specific application requirements
- Repair and maintenance services to ensure optimal performance and
longevity
- Training and education for RVCM operation and maintenance
- Technical consulting and engineering services for RVCM integration
into larger systems
Our goal is to provide comprehensive support and services to ensure
that our customers get the most out of their RVCMs.
Packing and Shipping:
Product Packaging:
- The Rotary Voice Coil Motor will be packaged in a sturdy cardboard
box with appropriate cushioning material to prevent damage during
transit.
- Each motor will be individually wrapped in bubble wrap to provide
extra protection during shipping.
- The package will also include a user manual and any necessary
installation hardware.
Shipping:
- The Rotary Voice Coil Motor will be shipped via a reputable courier
service.
- Shipping options will be provided at checkout, including standard
and expedited shipping.
- Tracking information will be provided to the customer once the
package has been shipped.
FAQ:
Q1: What is the brand name of this product?
A1: The brand name of this product is SUPT MOTION.
Q2: What is the model number of this product?
A2: The model number of this product is VARS Series.
Q3: What is the place of origin for this product?
A3: The place of origin for this product is Jiangsu, China.
Q4: What certifications does this product have?
A4: This product is certified with ISO9001-2000.
Q5: What is the minimum order quantity for this product?
A5: The minimum order quantity for this product is 1 or more.
Q6: What is the price of this product?
A6: Different models of motors, different quantities, different
prices.
Q7: What are the packaging details for this product?
A7: The packaging details for this product include carton
packaging, etc.
Q8: What is the delivery time for this product?
A8: For 1-5 products, shipment takes 5-7 days; samples take 3-5
days; bulk order delivery time is to be negotiated.
Q9: What are the payment terms for this product?
A9: The payment terms for this product are T/T.
Q10: What is the supply ability for this product?
A10: The supply ability for this product will be provided during
the interview.
