    XY Axis Linear Voice Coil Actuator Flat Motors For Micro Machine Tool Industry

    Ask Lasest Price
    Brand Name : SUPT MOTION

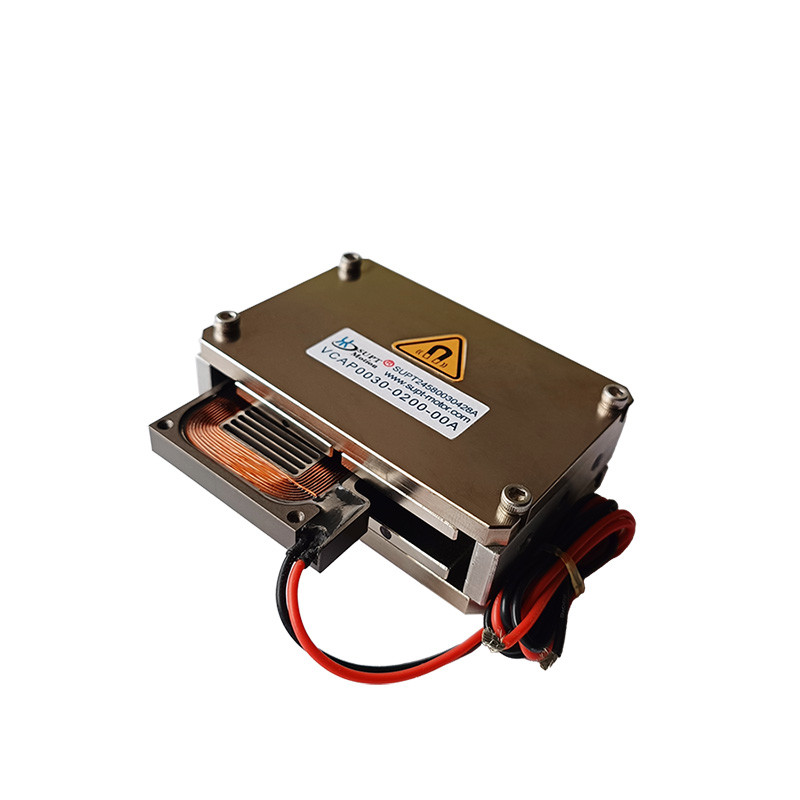

    Model Number : VCAP0030-0200-00A
    Certification : CE, ISO9001
    Price : $128
    Payment Terms : T/T
    Supply Ability : To be negotiated
    Delivery Time : 1-5pcs ,5 days . >20pcs ,To be negotiated
    • Product Details
    • Company Profile

    XY Axis Linear Voice Coil Actuator Flat Motors For Micro Machine Tool Industry

    Product Description:

    The VCAP series Planer Actuators have a lower stroke length per size than Rectangular,But they also have a lower height profile .Forces range up to 500N and stroke to 15mm
    The VCAP series Planer Actuator are the ideal solution for very small stroke X-Y Axis movements and their major market is in the semiconductor and micro machine tool industries.
    In the field of micro-machines, xy-axis linear voice coil motors flat type motors are widely used for precision positioning and micro-machining tasks due to their high accuracy, high speed and rapid response.They are usually designed as an integrated structure, taking up little space and contributing to the compactness of the overall structure of the micro-machine tool.
    Their low-profile design makes them ideal for applications where space is limited, especially for the complex layout requirements of micro-machines.
    Flat series voice coil motors are typically used for table positioning on micro-machines to ensure that the workpiece can be moved to the specified position with high accuracy during machining. They are suitable for laser machining, micro-milling, micro-drilling and other machining processes that require high-precision movement and multi-axis coordination.
    Flat voice coil motors can also be used in applications that require fast and precise movement over short distances, such as scanning systems or micro-positioning stages in micro-machining.
    Commonly used in microelectronic assembly, optical device manufacturing and other tasks requiring high frequency response and precise positioning.

    Product Parameters:

    Product ModelPeak Force
    (N)
    Continuous Force
    at 25℃(N)
    Total Stroke
    (mm)
    Max Voltage
    (V)
    Back EMF Constant
    (V/m/s)
    Length
    (mm)
    Width
    (mm)
    Height
    (mm)
    VCAP0020-0068-00A205.56.88.24.4395021.5
    VCAP0020-0160-00A205.31627.64.4595022.5
    VCAP0030-0200-00A3012.32024.310.5807425
    VCAP0100-0020-00A10047441.280.111010551

    ParameterValue
    LifetimeLong
    Noise LevelLow
    Model NumberVCAP Series
    ForceHigh
    TypeFlat Type Voice Coil Motor
    Positioning AccuracyHigh
    Size (mm)80*74*25
    KeywordsElectric DC Motors


    Application:

    The main application of a voice coil motor:
    1.Semiconductor industry:Writting,cutting,drilling,transportation systems,welding,robotics.
    2.Valve operation in the field:Type metering valves,pressure test systems,pneumatic valve chemistry injection system.
    3.Micro machine industry:Feed systems,micro drilling,precision stamping.
    4.Vibration system:Shaking table,vibration platform.
    5.Medical filed:Micro-injection system,respiratory equipment,testing equipment.
    6.Aviation Technology:Flight control system,pilot feedback system.
    7.Commercial use field:Computer cooling pump miniature camera auto focus system.
    8.Automation industry:Laser equipment,dispenser,test equipment,textile machinery.
    XY Axis Linear Voice Coil Actuator Flat Motors For Micro Machine Tool IndustryXY Axis Linear Voice Coil Actuator Flat Motors For Micro Machine Tool Industry
