Product Description:

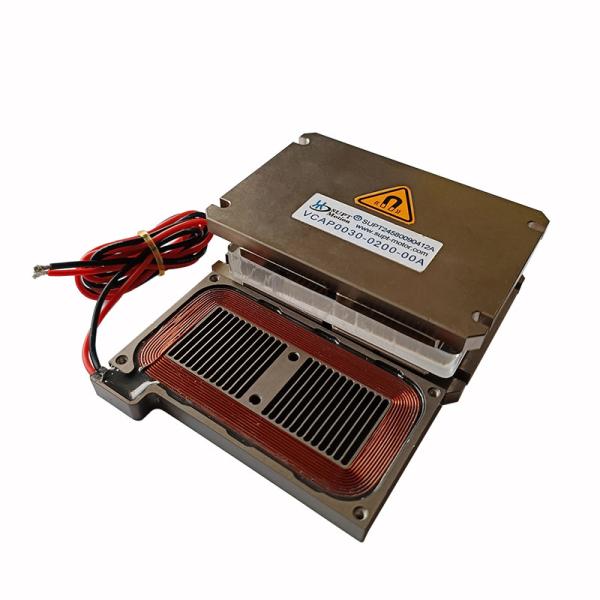

The VCAP series Planer Actuators have a lower stroke length per size than Rectangular,But they also have a lower height profile .Forces range up to 500N and strokers to 15mm,The VCAP series Planer Actuator are the ideal solution for very small stroke X-Y Axis movements and their major market is in the semiconductor and micro machine tool industries.

In the semiconductor industry, linear voice coil motors are used in applications such as:

Dispenser: In the semiconductor packaging process, the dispenser needs to precisely control the position and amount of glue dispensed. The voice coil motor can precisely control the movement of the dispensing head to achieve high-precision dispensing operation and ensure the packaging quality of semiconductor chips.

Lead Bonding Machine: Used to connect the pins on the chip to the pins on the package substrate, the requirements for positioning accuracy and motion speed are extremely high. Voice coil motors can provide fast and precise motion control to ensure the quality and efficiency of lead bonding.
PCB Drilling Machines: During the manufacturing process of printed circuit boards, drilling operations are required. Voice coil motors can control the motion of the drilling head to achieve high precision drilling and improve PCB processing accuracy and quality.
Photolithography: Photolithography is one of the core equipments for semiconductor manufacturing, which requires very high precision and speed for motion control. Voice coil motors are used in the lithography machine to control the motion of the mask table and wafer table to ensure the precision and efficiency of lithography.
Wafer pick and place: In the production process of semiconductor wafers, it is necessary to pick and place wafers. Voice coil motors can provide precise motion control to ensure safe and accurate pick and place of wafers and improve production efficiency.

Features:

The actuator coil is lightweight, with short response time and high frequency.
Short stroke, compact structure.
Stroke 1mm-20mm.
Peak thrust 1N-300N.

Product Parameter:

Product Applications:

Suzhou Unite Precision Machinery Technology Co., Ltd.(Supt Motion) is a high-tech enterprise specializing in the design, manufacturing, and sales of voice coil actuator, linear motors, and precision linear motion platforms. The company produces high-quality and high-performance voice coil actuator, linear motors, and precision linear motion platforms using domestic and foreign front-end technology and testing methods, which can provide precise direct drive control solutions and customized products for domestic and foreign customers.

The company has an experienced technical team in the industry with over 13 years of experience in precision linear motion design, and its products have obtained over 30 patent technology certifications. We can develop high-performance and high-quality products that meet customer requirements based on their actual needs.

The company implements advanced front-end design and process standards both domestically and internationally, has a complete and effective quality assurance system, and strictly implements the ISO 9001 quality management system for standardized production. The testing equipment is complete, and it can conduct comprehensive testing of product performance, effectively ensuring product quality. The company has multiple certifications such as iso9001, CE, and ROHS.

Our tenet: High quality is our pursuit, and customer satisfaction is our commitment.

We will continue to improve in technology Strive for perfection in the quality, We will ensure that our high quality and inexpensive products are satisfied ,Make it has stronger competitiveness.

The company has successfully served over 2000+ domestic and foreign customers, winning market reputation with export quality and Perfect service. We provide high-quality voice coil actuators, linear motors, and precision linear motion platform series products for numerous brand enterprises, widely used in intelligent equipment fields such as semiconductors, optical systems, biomedicine, vibration control, valve control, precision machining, 3C, new energy batteries, automotive electronics, packaging, printing, aerospace, image processing automation, etc.
