Product Description:

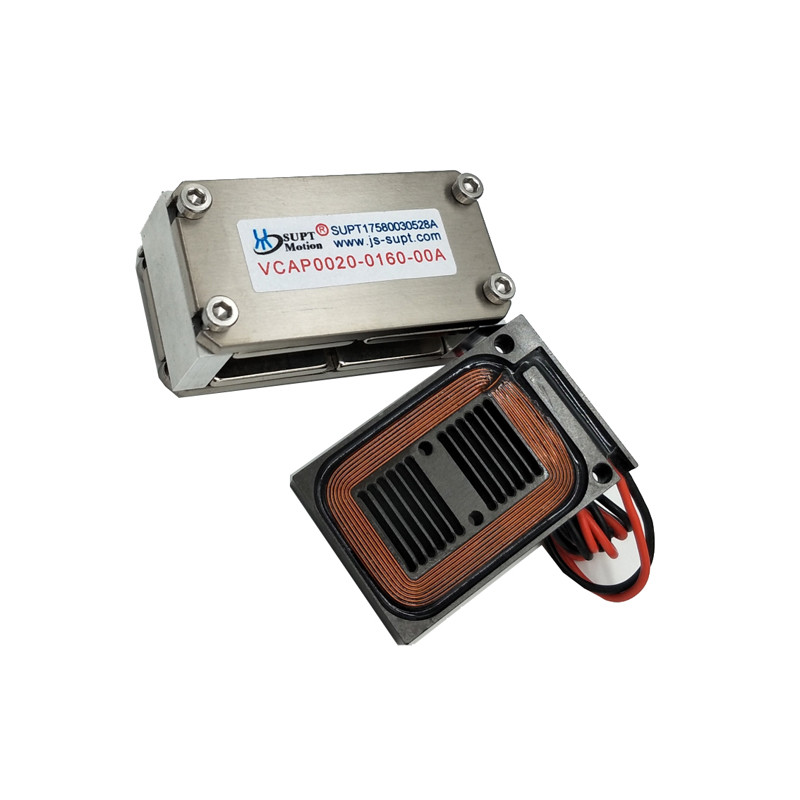

The Flat voice coil motors have a flatter shape and a shorter stroke than rectangular voice coil motors for the same size, but they have the advantage of a lower height surface, 500N thrust and a stroke of 25mm, making them ideal for generating short-stroke X-Y motions, and are marketed to the semiconductor and micro-machine tool industries.

Flat voice coil motors are used in the micro-machinery industry:
Multi-coordinate Positioning Stage: In machining, workpieces need to be positioned and processed in multiple coordinates. Voice coil motors can be used as the drive device for multi-coordinate positioning platforms, providing high-precision and high-speed motion control to meet the machining needs of complex parts.
CNC Machine Tools: Tool feeding system for CNC machine tools to improve the positioning accuracy and feeding speed of the tool, thus improving the precision and efficiency of machining.
Precision Grinding and Polishing Equipment: Precise motion control of the workpiece is required in the precision grinding and polishing process. Voice coil motors can provide high-precision linear motion to ensure the precision and quality of grinding and polishing.

Features:

The actuator coil is lightweight, with short response time and high frequency.
Short stroke, compact structure.
Stroke 1mm-25mm.
Peak thrust 1N-300N.
Commonly used for x-y axis motion stages.

Product Parameters:

Applications:

Flat Plate Voice Coil Motors are widely used to drive a variety of high-precision equipment, such as optical instruments, semiconductor production equipment, and precision measuring instruments. In these applications, flat voice coil motors can provide high-precision displacement control and fast response speed to ensure the processing accuracy and productivity of the equipment. Meanwhile, in the field of automation control, flat voice coil motors are also used to realize the precise control of various automation equipments, such as robots, automation equipments, automated production lines.

Suzhou Unite Precision Machinery Technology Co., Ltd.(Supt Motion) is a high-tech enterprise specializing in the design, manufacturing, and sales of voice coil actuator, linear motors, and precision linear motion platforms. The company produces high-quality and high-performance voice coil actuator, linear motors, and precision linear motion platforms using domestic and foreign front-end technology and testing methods, which can provide precise direct drive control solutions and customized products for domestic and foreign customers.

The company has an experienced technical team in the industry with over 13 years of experience in precision linear motion design, and its products have obtained over 30 patent technology certifications. We can develop high-performance and high-quality products that meet customer requirements based on their actual needs.

The company implements advanced front-end design and process standards both domestically and internationally, has a complete and effective quality assurance system, and strictly implements the ISO 9001 quality management system for standardized production. The testing equipment is complete, and it can conduct comprehensive testing of product performance, effectively ensuring product quality. The company has multiple certifications such as iso9001, CE, and ROHS.

Our tenet: High quality is our pursuit, and customer satisfaction is our commitment.

We will continue to improve in technology Strive for perfection in the quality, We will ensure that our high quality and inexpensive products are satisfied ,Make it has stronger competitiveness.

The company has successfully served over 2000+ domestic and foreign customers, winning market reputation with export quality and Perfect service. We provide high-quality voice coil actuators, linear motors, and precision linear motion platform series products for numerous brand enterprises, widely used in intelligent equipment fields such as semiconductors, optical systems, biomedicine, vibration control, valve control, precision machining, 3C, new energy batteries, automotive electronics, packaging, printing, aerospace, image processing automation, etc.
